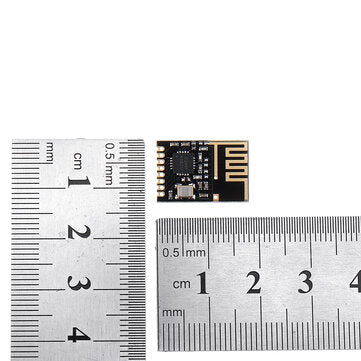

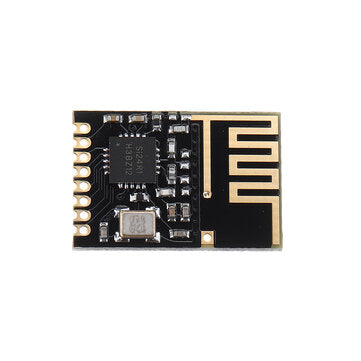

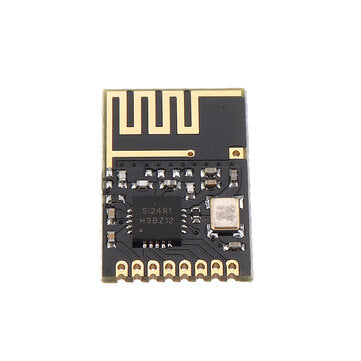

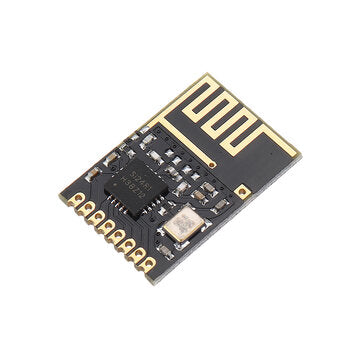

NRF24L01 Mini SMD 2.4GHz Wireless Module Power Enhanced Version SMD Receiver Transceiver Low Voltage

More document click to download: ? Features: ? - 2Mbit / s 1Mbit / s 250Kbit / s transfer rate options - MultiCeiver hardware to provide the 6 receiver functions at the same time - Only need an external inductance when match antenna - 5V input tolerance level - No need external level converter - Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU - No MCU with SPI Interface - 20 pin 4x4mm QFN leadless package very few external components - The 2Mbit / s rate when the peak current 12.5mA received - The 2Mbit / s rate @ 0dBm output current of 11mA peak - 2Mbit / s rate of only a small average current - 400nA Power-down mode, power consumption - Power consumption of 32uA in standby mode - 130us fast switching and wake-up time - With on-chip voltage regulator oltage regulators - In the 1.9 to 3.6V low voltage operation - Possible to reduce noise ? Application: ? Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications. ? Package Included: ? 1 x NRF24L01 Mini SMD 2.4GHz Wireless Module
