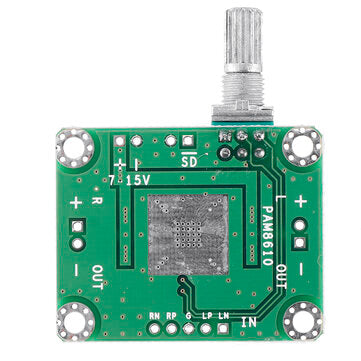

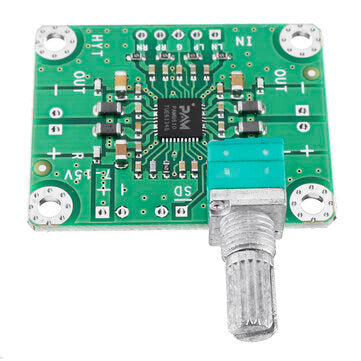

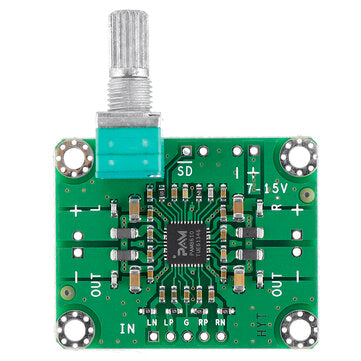

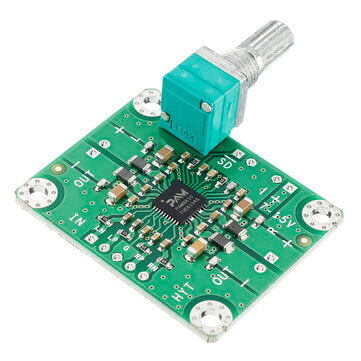

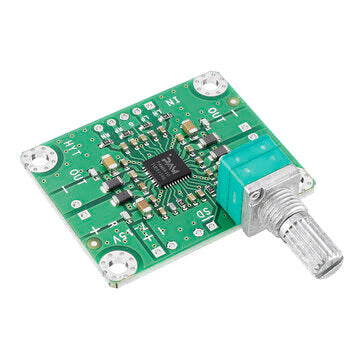

PAM8610 7-15V Differential Class D Dual Channel 15W*2 High Power Mini Digital Power Amplifier Board
PAM8610 7-15V Differential Class D Dual Channel 15W*2 High Power Mini Digital Power Amplifier Board
Regular price
$378.00 USD
Regular price
$630.00 USD
Sale price
$378.00 USD
Unit price
per
Couldn't load pickup availability
Specification:

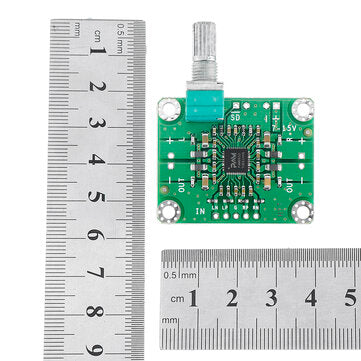

Amplifier board size: 3.2x4x1.6cm Direct current (DC): 7-15V, 12V (2A) recommended Output power: 10W+10W (8 ohms), 15W+15W (4 ohms) Signal to noise ratio: 90dB Efficiency: greater than 90% When single-ended LRG input: audio input connects to LP, G, RP The differential input is: remove R11, R12, and connect the audio input to LN, LP, RN, RP Mute foot: SHUTDOWN (SD) is shorted to GND, the power amplifier is muted ? Package Included:
1 x Amplifier board
