PH Value Data Detection and Acquisition Sensor Module Acidity and Alkalinity Sens... (TYPE: NOPROBE)

PH Value Data Detection and Acquisition Sensor Module Acidity and Alkalinity Sens... (TYPE: NOPROBE)

$462.00 USD
$770.00 USD $462.00 USD
Sale Sold out

SELECTED OPTION:
TYPE: NOPROBE

? If you cana??t open it, please check if your browser has disabled popup
Featue:

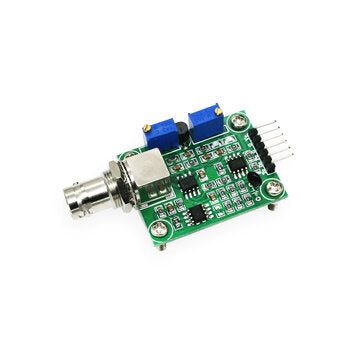

Product Name: PH value acquisition sensor module (with temperature compensation) 1. Heating voltage: 5±0.2V (AC??DC) 2. Working current: 5-10mA 3. Detection concentration range: PH0-14 4. Detection temperature range: 0-80 ?￣C 5. Response time: a??? 5S 6. Stabilization time: a???60S 7. Component power consumption: a???0.5W 8. Working temperature: -10~50?￣C (nominal temperature 20?￣C) 9. Working humidity: 95% RH (nominal humidity 65% RH) 10. Service life: 3 years 11. Size: 42mm ?? 32mm ?? 20mm 12. Weight: 25g 13. Output mode: analog voltage signal output ? Note:

Buffer solvent needs to be purchased separately (note that we have no sales and need to be purchased locally, thank you) Such as: PH buffer PH value standard solution preparation 4/7/9 PH buffer reagent 3*1/set PH buffer 4/7/9 1. PH 4.003, 25 degrees, potassium hydrogen phthalate--- can prepare 250ML solution 2. PH 6.864, 25 degrees, mixed phosphate - can prepare 250ML solution 3. PH 9.182, 25 degrees, boric acid --- can prepare 250ML solution

Package includes:
(optional)
No probe:

1 x?PH value acquisition sensor module

With probe:

1 x?PH value acquisition sensor module
1 x PH probe
