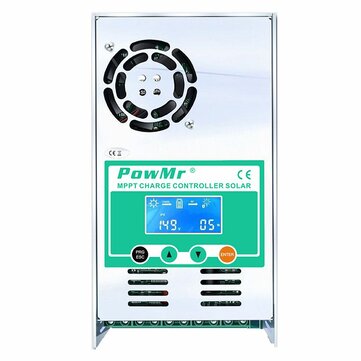

| ?????Model?Name | ? ? ? MPPT-30A | MPPT-40A? | MPPT-50A? | MPPT-60A |
| Charging mode | MPPT Maximum power poin tracking automatically |
| Charging | 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge |
| System type | DC12V/24V/36V/48V Recognition automatically |
| System voltage automatic recognition | 12V system (DC9V-DC15V) |
| 24V system (DC18V-DC29V) |
| 36V system (DC30V-DC39V) |
| 48V system (DC40V~DC60V) |
| Soft start time | ??????1S |
| Dynamic response and recovery time | ??????98.1%? (Voc is 1.5 or 2 times than battery, then it?????s best efficiency) |
| PV utilization | ??????99% |
| Input specification |
| Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it?????s best efficiency. ) | 12V system (DC20V~DC80V) |
| 24V system (DC37V~DC105V) |
| 36V system (DC50V~DC160V) |
| 48V system (DC72V~DC160V) |
| The maximum PV input voltage (Voc) | DC190V(The controller can?????t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) |
| The maximum PV input power(The total power rated of PV can?????t be over this watt that will break the controller.) | 12V system ?(360W) | 12V system (480W) | 12V system ?(600W) | 12V system ?(720W)
|
| 24V system (720W) | 24V system (960W) | 24V system (1200W) | 24V system (1440W)
|
| 36V system (1080W) | |
