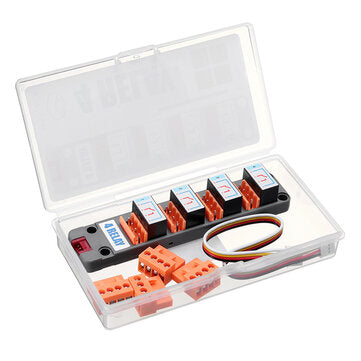

Programmable 4-Way Relay Module AC250V 10A with LED Status Indication IIC Communication Controlled I
Programmable 4-Way Relay Module AC250V 10A with LED Status Indication IIC Communication Controlled I
Regular price
$601.00 USD
Regular price
$1,001.67 USD
Sale price
$601.00 USD
Unit price
per
Couldn't load pickup availability
Description:

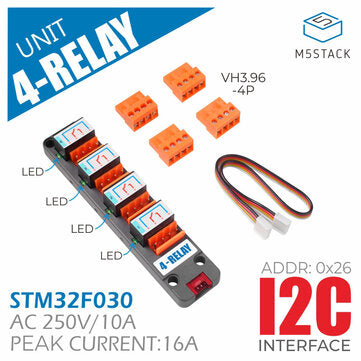

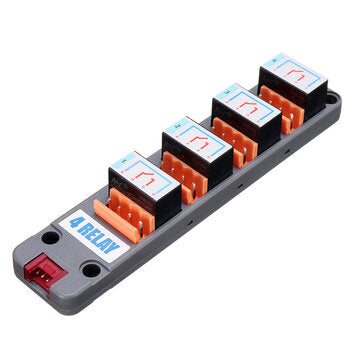

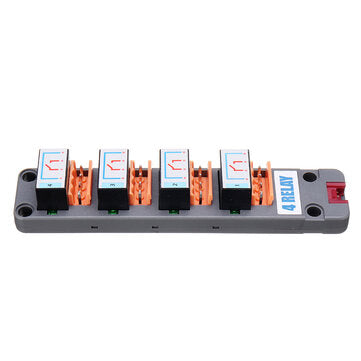

4-Relay is a unit integrated with 4-way relay, which is controlled by IIC. The maximum control voltage of relay is AC-250V, rated current is 10A, and instantaneous current can bear 16A. Each relay can be controlled independently. Each relay has a programmable status indicator.
Features:
4-way relay AC-250V/10A LED status indication IIC communication (0x26)
Package Included:

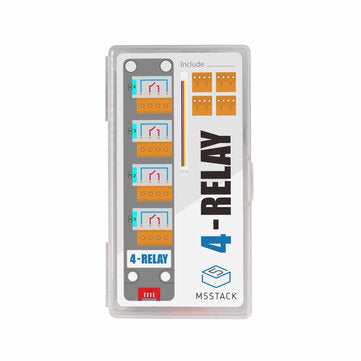

1x 4-Relay Unit 1x Grove Cable(20cm) 4x VH-3.96-4P Plug terminal
Applications:
Digital signal switching Programmable power switch
Specification:
PinMap:
Example:
1. Arduin IDE
4-Relay is a unit integrated with 4-way relay, which is controlled by IIC. The maximum control voltage of relay is AC-250V, rated current is 10A, and instantaneous current can bear 16A. Each relay can be controlled independently. Each relay has a programmable status indicator.
Features:
4-way relay AC-250V/10A LED status indication IIC communication (0x26)
Package Included:
1x 4-Relay Unit 1x Grove Cable(20cm) 4x VH-3.96-4P Plug terminal
Applications:
Digital signal switching Programmable power switch
Specification:
| Resources | Parameter |
| Maximum?input?voltage | 250V |
| Rated?current | 10A |
| Maximum?instantaneous?currenta | 16A |
| Communication | IIC(0x26) |
| Net?Weight | 40g |
| Gross?Weight | 84g |
| Product?Size | 112*23*18mm |
| Package?Size | 125*65*22mm |
PinMap:
| M5Core(GROVE?A) | SDA(GPIO21) | SCL(GPIO22) | 5V | GND |
| 4-relay?Unit | SDA | SCL | 5V | GND |
Example:
1. Arduin IDE
