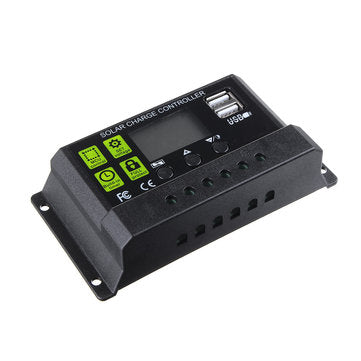

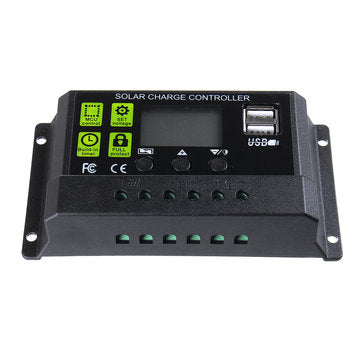

PWM 10A 12V/24V Auto Solar Panel Solar Charge Controller Battery Charge Adapter LCD USB

Specifications:
Name:10A 12V/24V LCD Display PWM Solar Panel Charge Controller? Model:C11471 Rated voltage:12/24V AUTO Charge current:10A Discharge current:10A Max.PV input power:130W(12V),260W(24V) Max solar input: 12V battery,the highest 23V 24V battery when the highest 46V Equalization:14.4V Float charge:13.7V (defaul,adjustable) Discharge stop:10.7V(defaul,adjustable) Discharge reconnect:12.6V(defaul,adjustable) Charge reconnect:13V Voltage of open light:Solar panel 8V(Light lights delay) Voltage of close light:Solar panel 8V(Light off delay) USB output:2 way USB output,5V/2A(Max.) Self-consume:<10mA Operationg temperature:-35-60a?? Color:Black Size:133.5mmx70mmx35mm ? Feature Build-in industrial micro controller. Big LCD display,all adjustable parameter. Fully 3-stage PWM charge management. Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection. Dual USB output,the maximum current of 2.5A,to support mobile phone charging. Dual mosfet reverse current protection,low heat production. ? System connection 1.Connect he battery to the charge regulator-plus and minus. 2.Connect the photovoltaic module to the regulator-plus and minus. 3.Connect the consumer to the? charge regulator-plus and minus. ? Package included: 1x 10A PWM Solar Charge Controller? 1x Manual
