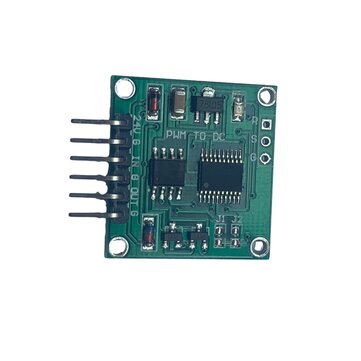

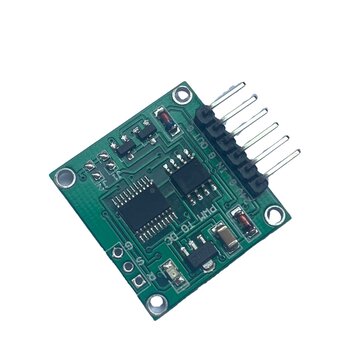

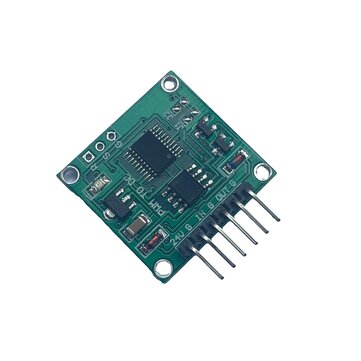

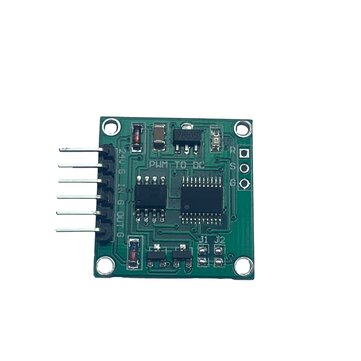

PWM to Voltage PWM to 0-5V 0-10V Low Frequency 5~500Hz Linear Conversion Transmitter Module

Instruction:

This is a linear conversion module, which is processed by the internal chip to output the PWM data as a voltage signal.

?

Module parameters

?

1. Power supply voltage: 9V ~ 24V

2. Signal input voltage range: 4???24V

3. Signal input frequency range: 5Hz???500Hz

4. Range of signal input duty ratio: 0???100%

5. Output voltage: 0.00V ??? 5.00V/0.00V ??? 10.00V

6. Input method: J1 pad on the circuit board: the default is open circuit, which has not been used yet.

7. Output mode: J2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.

8. Application range: remote data acquisition and control equipment;

9. Size: (length) 26mm * (width) 23mm * (height) 10mm

10. Module interface:

24V: Positive power supply interface (9V ~ 24V).

G: Power ground interface.

IN: Signal input positive port.

G: Signal input negative port.

OUT: Signal output interface (0.00V ??? 5.00V/0.00V ??? 10.00V).

G: Power ground interface.

Note: When the output is 0.00V to 10.00V, the power supply voltage must be 15V.

Output (0.00V ??? 5.00V) Resolution: 0.050V/D (Volt/Duty Cycle)

Output (0.00V ??? 10.00V) Resolution: 0.100V/D (Volt/Duty Cycle)

Calculate the measured duty cycle formula: (output voltage (V)/resolution) = duty cycle (%).

For example: output (0.00V ~ 5.00V) output is 2.5V, (2.5(V)/0.05) = 50(%).

Package includes:

1 x?Transmitter Module
