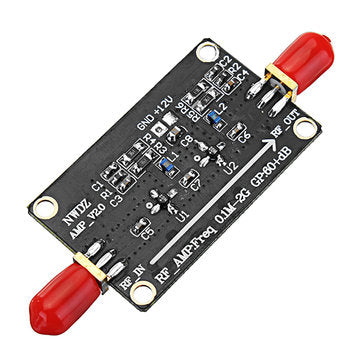

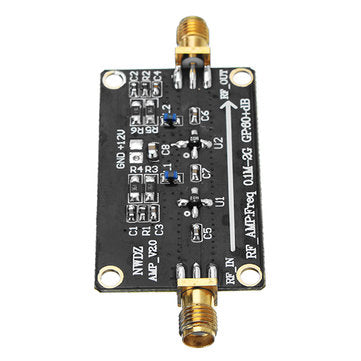

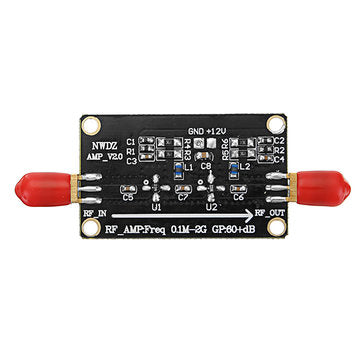

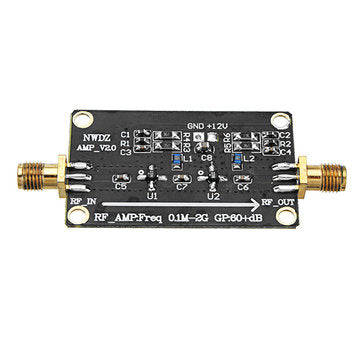

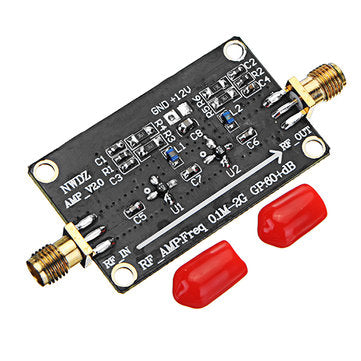

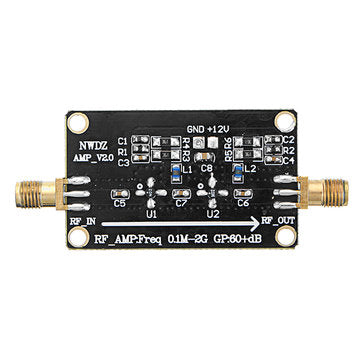

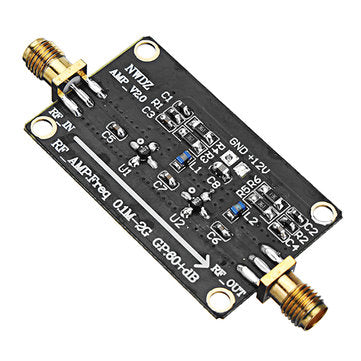

RF Wideband Amplifier LNA 0.1M-2G Gain 60dB Two-stage Amplification
RF Wideband Amplifier LNA 0.1M-2G Gain 60dB Two-stage Amplification
Regular price
$569.00 USD
Regular price
$948.33 USD
Sale price
$569.00 USD
Unit price
per
Couldn't load pickup availability
Description:
Using two cascaded, with low noise, high gain (60dB) features, suitable for weak signal detection LNA low noise.
Feature:
Working frequency: 0.01-2000MHz Power gain: 60dB @ 500M Noise figure NF: 2dB @ 300M Maximum output power: +10 dBm (10mW) @ 1dB compression point Working current: 70mA (12V) Supply voltage: 12V recommended, (9-15V) System Impedance: 50 ohms Higher gain flatness when working within 500M
Package included:
1 x?RF Wideband Amplifier
Using two cascaded, with low noise, high gain (60dB) features, suitable for weak signal detection LNA low noise.
Feature:
Working frequency: 0.01-2000MHz Power gain: 60dB @ 500M Noise figure NF: 2dB @ 300M Maximum output power: +10 dBm (10mW) @ 1dB compression point Working current: 70mA (12V) Supply voltage: 12V recommended, (9-15V) System Impedance: 50 ohms Higher gain flatness when working within 500M
Package included:
1 x?RF Wideband Amplifier
