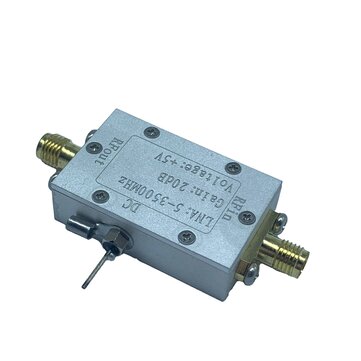

RF Wideband Low Noise Amplifier 5-3500MHz Gain 20dB High Frequency Amplifier Board

Application:
This amplifier has the advantages of wide frequency range, stable gain, small noise figure, large dynamic range (+20dBm@1dBP), etc. It is especially suitable for various RF receiving front-end circuits to increase communication distance! Widely used in shortwave, FM broadcasting, remote control receivers, cable TV signal amplifiers, Beidou, GPS satellite navigation, 2.4G Bluetooth, WIFI receiver RF front-end and other places where low noise and small signal RF amplification is required!
Amplifier parameter index:
Working frequency: 5-3500MHz Amplification gain: 20dB (typical value) Noise figure: 1.3 (typical value) Maximum output power: +20dBm (100mW) @1dB compression point Working current: 80mA (5V) Power supply voltage: 3.3-6VDC Product appearance size: length 42mm, width 22mm, height 10mm Product weight: 21.4g System impedance: 50 ohms F= 5MHz, gain=23dB F= 30Mhz gain=23dB F= 100MHz gain=23dB F= 150Mhz gain=23dB F= 420MHz gain=22dB F=1500MHz gain=20dB F=3000MHz gain=18.7dB F=3500MHz gain=17.6dB
Package includes:
1 x?Amplifier Board
