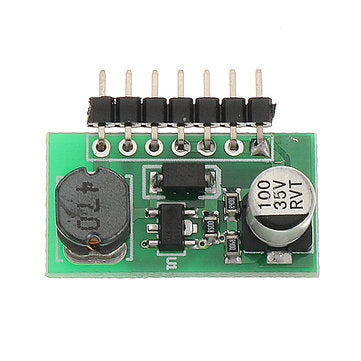

RIDEN 3W LED Driver Supports PWM Dimming IN 7-30V OUT 700mA Module

Description:
?
NOTE: Step-down mode, Inputs must be higher than the output above 2V-3V.

Instructions:
?
IN+: Positive electrode of power supply
IN-: Negative electrode of power supply.
LED+: Anode for LED?
LED-: Cathode connected to LED
PWM: Dimming control signal (2.8V-6V)
PWM signal limit frequency: 20HZ-20KHZ
Rated recommendations: About 1KHZ

Package included:

1 x 3W LED Driver
, , , , , , ,
