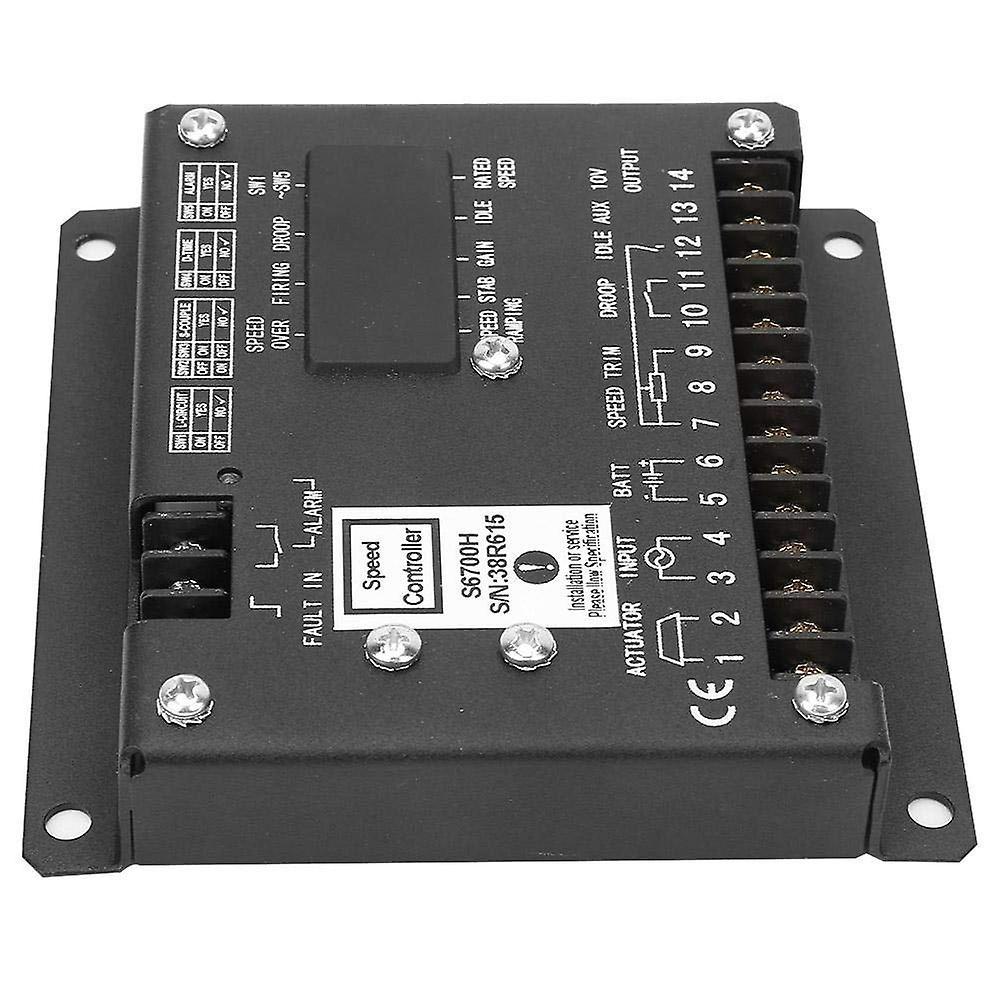

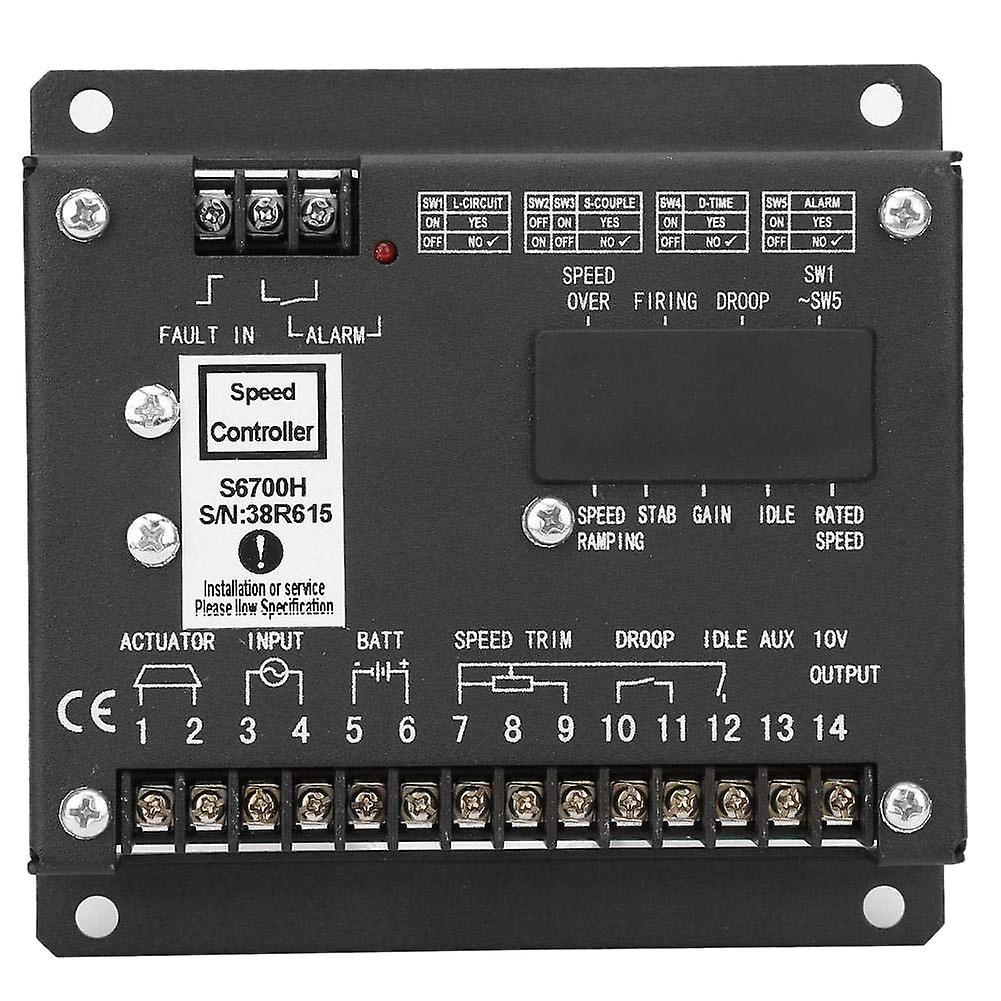

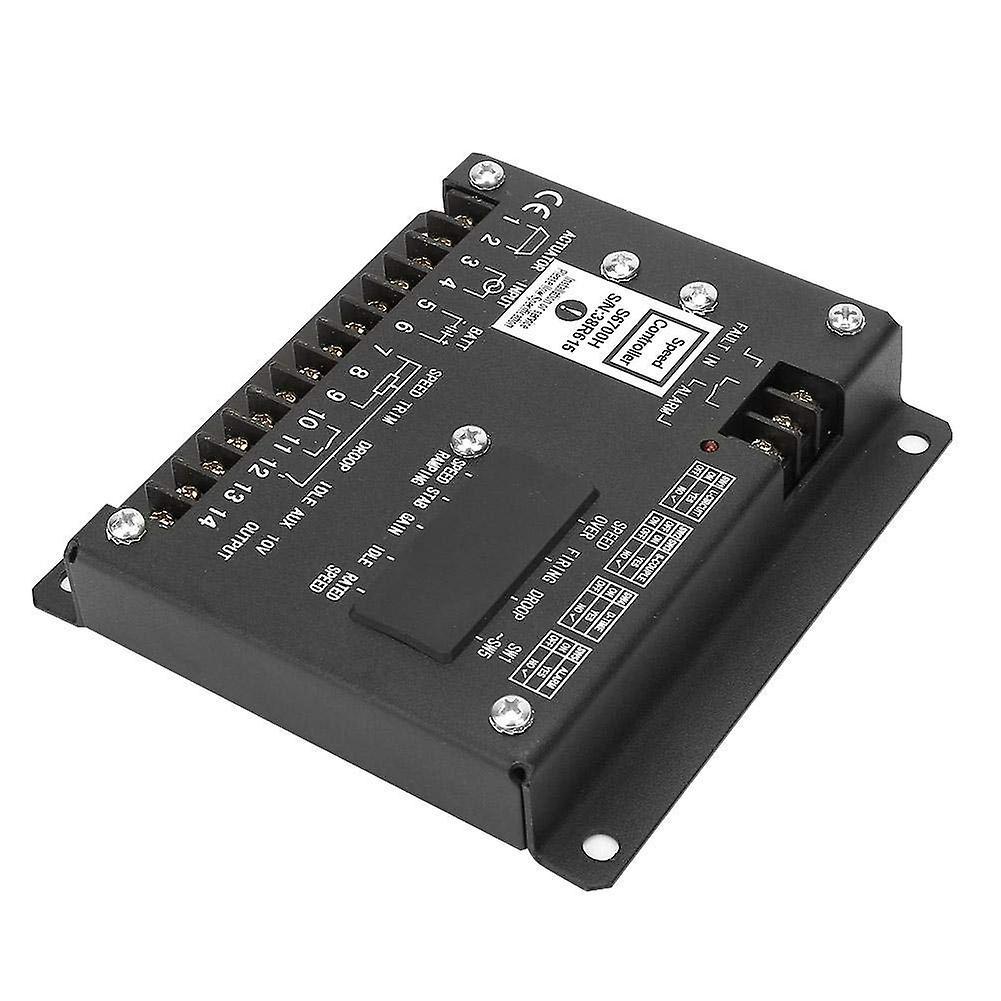

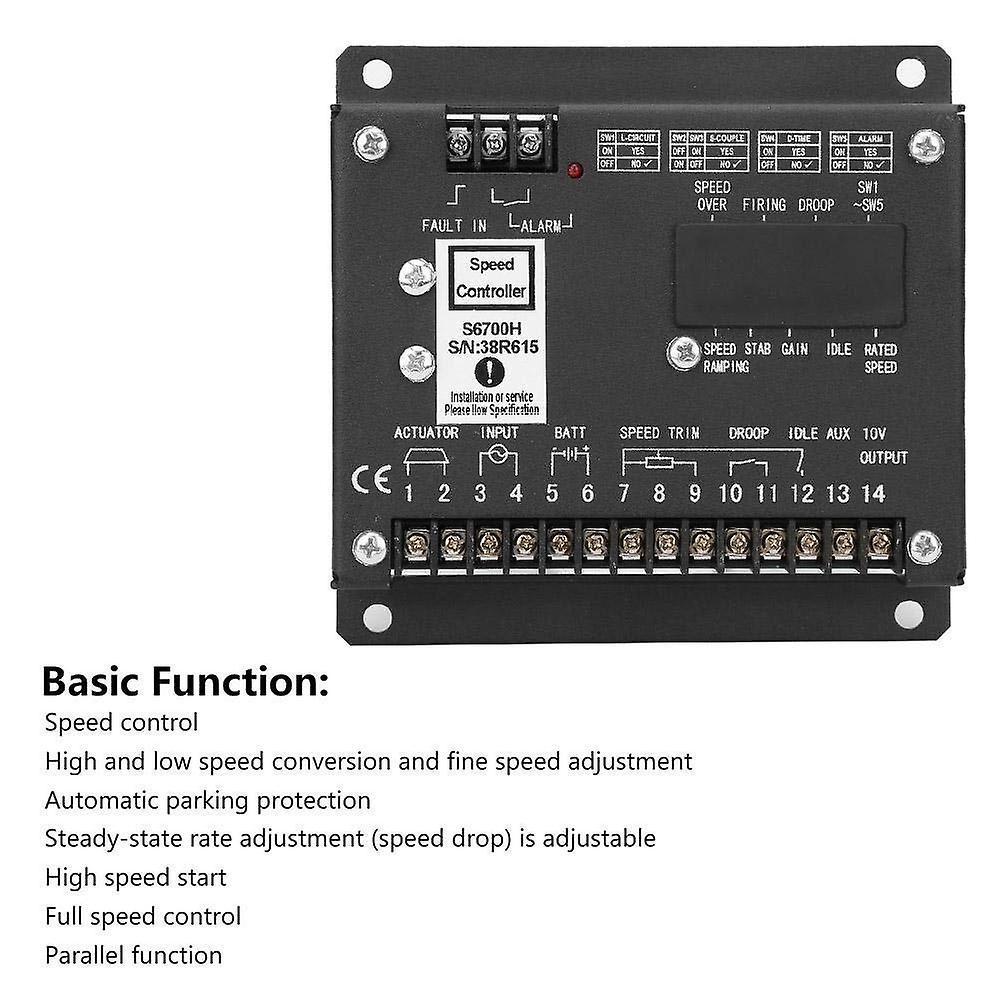

S6700h for Generator Speed Governor Engine Speed Control Unit

The S6700H Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control.The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate.The S6700H speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.Power reverse connection protectionActuator default protection. Speed signal Lose protectionOver-speed & External high Level input AlamEnvironmentalAmbient operating temperature range:- 40 ~ 85 CRelative humidity:95%Input Power Supply:24VDCActuator current range:2.5-10A(continuous)Speed sensor signal:1-20vCharacteristicsSpeed fine adjustment range: 100% r / minFrequency fluctuation: 0.25%Steady speed droop:0~3% (variable)Temperature drift: 1% (maximum)Material:plasticcolour:BlackPackage Contents:1 X Generator Speed GovernorOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
