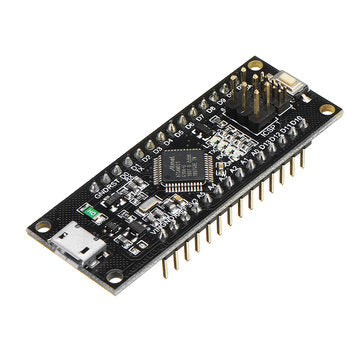

SAMD21 M0-Mini 32 Bit ARM Cortex M0 Core 48 MHz Pins Soldered Development Board Robotdyn for Arduino

Technical Parameters:

Microcontroller	ATSAMD21G18 48pins LQFP
USB-TTL converter	SAMD21 MCU
Power Out	3.3V-800mA
Power IN. USB	5V
Power IN. VIN/DC Jack	5V
Power Consumption	3.3V 220mA
Logic Level	3.3V
USB	Micro USB
Clock Frequency	48MHz
Operating Supply Voltage	3.3V
Digital I/O	20(7-PWM)
Analog I/O	6
Data RAM Type/Size	20Kb
Data ROM Type/Size	128Kb
Interface Type	ISP
Operating temperature	a??40D??￣/+85D??￣
Length??Width	56.5??18mm

Feature:

The RobotDyn SAMD21 M0-Mini represents a powerful, 32-bit extension of the Ard-uino U NO platform, but to small size like Micro or Nano. The board is powered by At mela??s SAMD21 MCU, featuring a 32-bit ARM Cortex? M0 core. The SAMD21 M0-Mini board expands the family by providing increased performance, enabling a variety of project opportunities for devices, and acts as a great educational tool for learning about 32-bit application development.? The Z ero applications span from smart IoT devices, wearable technology, high-tech automation, to crazy robotics. The board is powered by Atmela??s SAMD21 MCU, which features a 32-bit ARM Cortex? M0+ core. One of its most important features is Atmela??s Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware, significantly increasing the ease-of-use for software debugging. EDBG also supports a virtual COM port that can be used for device and bootloader programming. * Pin-headers soldered.

Package includes:

1 x Module
