Specification:
Material
Plastic, Aluminum
Color
As shown

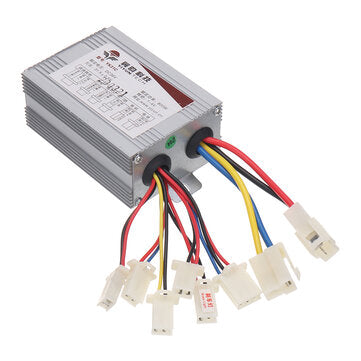

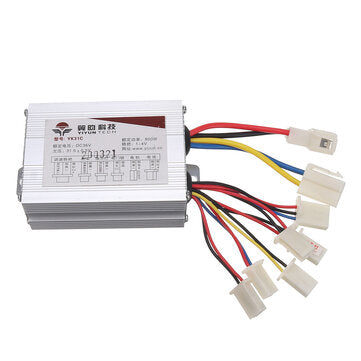

36V motor brushed controller
Matching motor
DC brushed motor
Motor brush controller for Electric bicycle & scooter
Rated voltage
DC 36 V
Rated power
800 W
Under Voltage Protection
31.5V +/- 0.5V
Size
L-86mm/3.4 x W-66mm/2.6 x H-38mm/1.5
Speed Regulator
1- 4 V(Throttle )
Current Limit
28A ± 1A Short Voltege
Match Motor
36V 500W
?

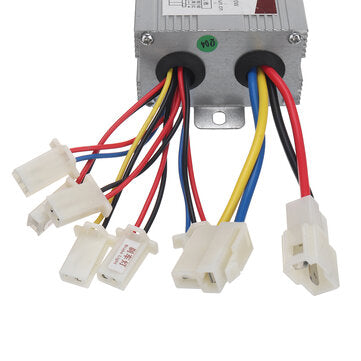

Wire: Speed control handle: fine black, fine red 5V+, green Brake: fine black, fine yellow Indicator light: thin black, thin red () Electric door lock: fine blue, fine red Motor: thick blue +, thick yellow- Battery: thick red +, thick black-
Notice:
1.Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
