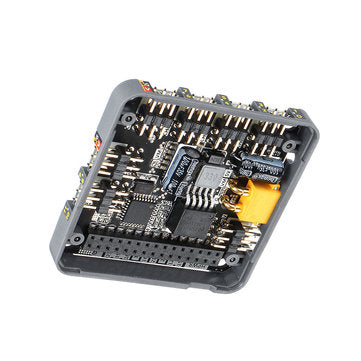

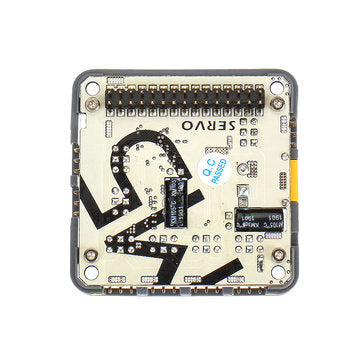

SERVO Module Board 12 Channels Servo Controller with MEGA328 Inside and Power Adapter 6-24V for Blo

Description:

SERVO?is made to implement the bestest, easiest way to drive Servo motors. This M5 module will make quick work of your next Servo project! It is able to drive mutiple Servo motors, up to 12 channals. We also added an DC input for power supplement. Through M-BUS the DC in can automatically power the M5 core at top.

Servo is powered by MEGA328 communicate via IIC(0x53).

Product Features:

• 12x servo ports
• DC power input: 6-24V 5.5*2.1mm
• DC Connector Type: XT60 (female)

Package?Included:

• 1x M5Stack Servo Module
• 1x Common Male to XT60 Male DC convertor

Applications:

• Humanoid robot
• for Bionic multi-joint robot
• Triaxial Camera Cradle

EasyLoader:

1.EasyLoader is a simple and fast program burner, and each product page has a product-related case program for EasyLoader. ? 2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click ????Burn???? to start burning. ? 3.The CP210X (USB driver) needs to be installed before the EasyLoader is burned.? ?

Example:

1. for IDE

?
