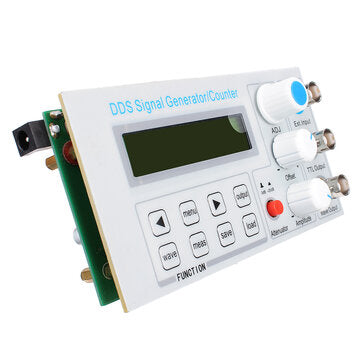

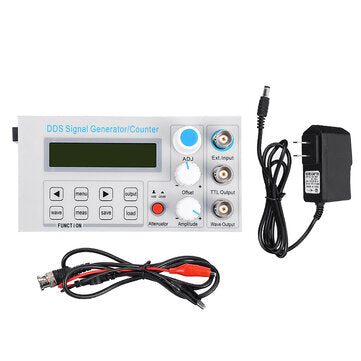

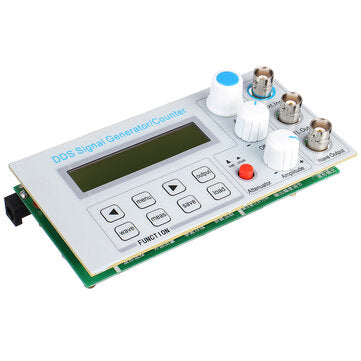

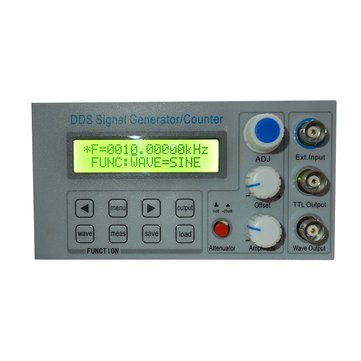

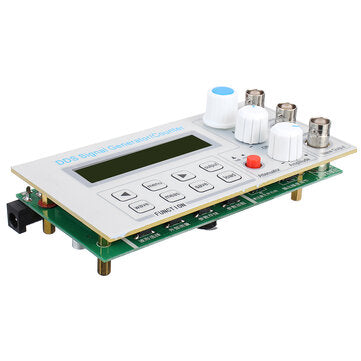

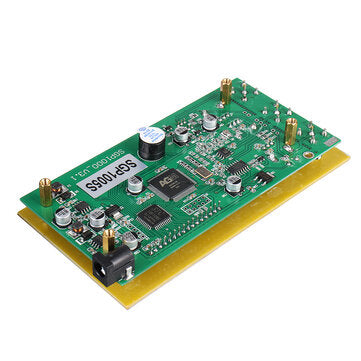

SGP1005S Function Signal Generator High Precision Digital DDS Function Signal Arbitrary Waveform Gen

Frequency

Model

SGP1002S

SGP1005S

SGP1010S

Sine

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Square

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Ramp/Triangle

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Pulse

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

TTL

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Others

0.01Hz-2Mhz

0.01Hz-5Mhz

0.01Hz-10Mhz

Signal Output Function

Output waveforms

Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave)

Output amplitude

a???10Vp-p (signal output, no load) ( MAX )? About 0.1Vp-p (MIN)

Output impedance

51??±10%(signal output)

DC offset

±3V(no load)

Resolution

0.01Hz(10mHz)

Frequency accuracy

±5??10 - 6

Frequency Stability

±2??10 - 6/3 Hours

Sine wave distortion

a???0.8% (reference frequency is 1kHz)

Triangle linearity

a???98%? (0.01Hz~10kHz)

Rise and fall time

a???100ns(square wave)

Duty range

1%~99%(digital control mode)?

TTL Output Function

Amplitude

>3Vp-p

Fan Out

>20 TTL loads

COUNTER? function

Counter Range

0-4294967295

Frequency Meter Range

1Hz~60MHz

Input Voltage Range

0.5Vp-p~20Vp-p

SWEEP? function

Sweep mode

Linear sweep, Logarithmic sweep

Sweep range

fM1 (pre-set) to fM2 (pre-set)

Sweep time?

1s~99s

Others

Display

LCD1602 in English

Save and Load Parameter

M0-M9(M0: default load)

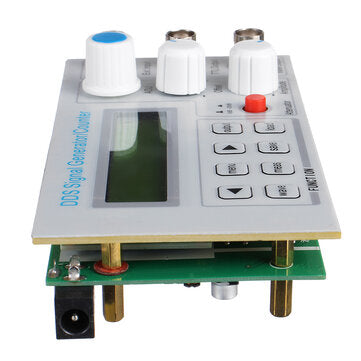

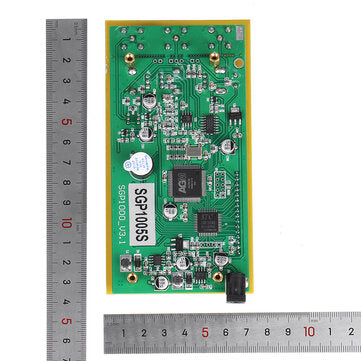

Size

135mm*65 mm*35mm

Buzzer warning tone

Can be turned On/Off by setting

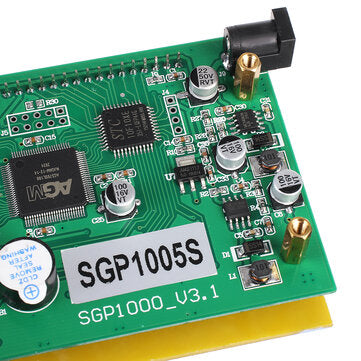

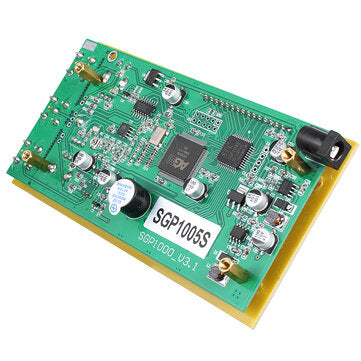

Production technology

Surface mounting technology, large scale integrated circuit, reliable and durable

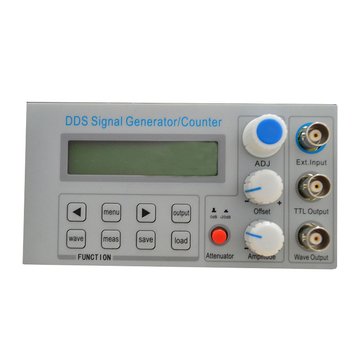

Operation feature

Button-controlled, Knob-adjusted continuously

Conditions requirement

Temp: 0~40a???? Humidity: < 80%
