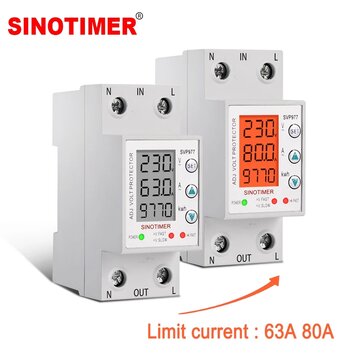

SINOTIMER SVP-977 230V 63A8 0A Home Usage Adjustable Voltage and C... (CURRENT: 80AWITHOUTBACKLIGHT)

SINOTIMER SVP-977 230V 63A8 0A Home Usage Adjustable Voltage and C... (CURRENT: 80AWITHOUTBACKLIGHT)

$755.00 USD
$1,258.33 USD $755.00 USD
Sale Sold out

SELECTED OPTION:
CURRENT: 80AWITHOUTBACKLIGHT

Functions: ? 1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 4.Automatic recovery 5.Voltage display(voltage measurement) 6.Current display (current measurement) 7.KWH display (kwh measurement) 8.Temporary KWH can be reset 9.Fauly inquiry 10.Cycle countdown timer ? Product Parameters:??
1.Model number:SVP-977 2.Power supply:230VAC 50/60Hz 3.Max.Loading power:1~63A? Adjustable???default:63A??? 4.Over-voltage protection value range:221V~300 (default:280V) ? ?Over-voltage recovery voltage range:220V~299V(default:250V) ? ?Over-voltage protection action time:0.1s~10s(default value:0.1s) ?5.Under-voltage protection value range:219V~150V (default:160V) ? ?Under-voltage recovery voltage range:151V~220V (default:180V) ? ?Under-voltage protection action time:0.1s~10s(default:0.1s) 6.Over-current adjustment range:1~63A ???default:63A??? ? ?Over-current action range:0.1~512 second ???default:5.0s??? 7.Recovery delay time:2s~600s(default:60s)a??a?? 8.Power-on delay time:2s~255s(default:2s) 9.Power consumption : <2W 10.Electric machinery life : 100,000 times 11.Installation:35mm DIN rail
Package included:
1 x?Voltage and Current Protector
