ST-15B 1.5W/15W FM Broadcast Transmitter Stereo PLL FM Radio Broadcast Stati... (TYPE: TNCCONNECTOR)

SELECTED OPTION:
TYPE: TNCCONNECTOR

for more options in this item.

Features:
1. The working frequency can be set at will, and the frequency range can be changed according to customer requirements (such as 75-85MHZ preset before leaving the factory) 2. LCD liquid crystal display, blue background light 3. Audio input (Audio+Mic), two input volume can be adjusted 4. Automatically save the operating frequency, and automatically jump to the operating frequency before the last shutdown 5. PLL professional phase-locked loop, frequency is 100% without drift 6.?TNC/BNC Type antenna output
Specification:
Power supply voltage: 12V/5A Frequency range: 87-108Mhz Power: 1.5W/15W
Frequency step value: 100kHz Frequency stabilization method: PLL phase-locked loop frequency synthesis Frequency stability: ±10ppm (-10 C+60?￣C) Modulation frequency deviation: a???±75kHz (100%) Working method: continuous work RF output impedance/power: 50 ohms/15W Reference range: 2Kma??10Km (open ground) Machine size: length 180, width 120, height 45MM Whole machine weight: 0.6kg
Package includes:
1 x FM transmitter (NOT included power supply + GP antenna) 1 x BNC/TNC Adapter(as gift,with this adapter the?FM transmitter can?compatible with BCN interface and TNC interface)

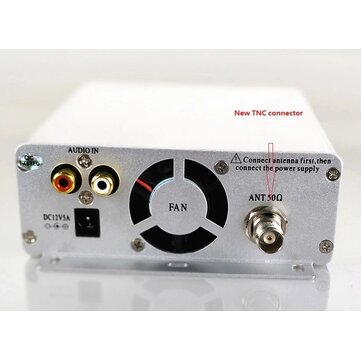

Details picture:
