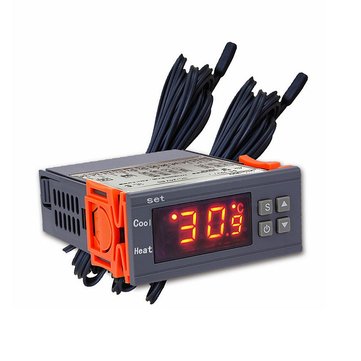

STC-800 LED Digital Temperature Controller 12V/24V Thermoregulator Thermostat with... (VOLTAGE: 24V)

STC-800 LED Digital Temperature Controller 12V/24V Thermoregulator Thermostat with... (VOLTAGE: 24V)

$566.00 USD
$943.33 USD $566.00 USD
Sale Sold out

SELECTED OPTION:
VOLTAGE: 24V

Features: ? -Switch the modes between cool and heat. -Control temperature by setting the temperature set value and the difference value. -Suitable for Laboratories use and other temperature-controlled systems. -Three digital tube temperature display and status indicator -With water level detection function -Mini and light weight design, easy to install. ? Specifications: ? Work Voltage: 12V / 24V DC Resolution: 0.1 ?￣. Power consumption: <3W. Relay output: compressor output relay 16A / 250VAV; solenoid valve relay 10A / 250VAV Input: 2 x NTC sensor, resistance is 10K?? at 25 a?? Sound: button sound and buzzer alarm sound Housing material: ABS flame retardant plastic Size: 75x34.5x85mm ? Usage Manual: ? Quickly restore the factory settings: Press and hold the up and down keys simultaneously, rE will be displayed after three seconds, and all settings will be restored to the factory settings Check room temperature: In the non-set state, press the key to display the detection value of room temperature sensor. After 6 seconds, the water temperature will be displayed again (D1 flashes, indicating that room temperature is displayed) Quick adjustment: Press the ST key when the thermostat is working normally. If the thermostat is in the constant temperature mode, the panel will display the parameter value of F0 (set temperature), and the intelligent mode will display the parameter value of F1 (temperature difference value). D1 flashes, indicating that the controller is now in the parameter setting state). ? Code Description: ? Water temperature alarm: H1 Low water temperature alarm: L1 High temperature alarm: H2 Water flow switch 1 alarm: P1 Water flow switch 2 alarm: P1 Water flow switch 1 and 2 alarm at the same time: PP ? Package Included: ? 1 x Digital Thermostat Temperature Controller Thermometer



View full details
