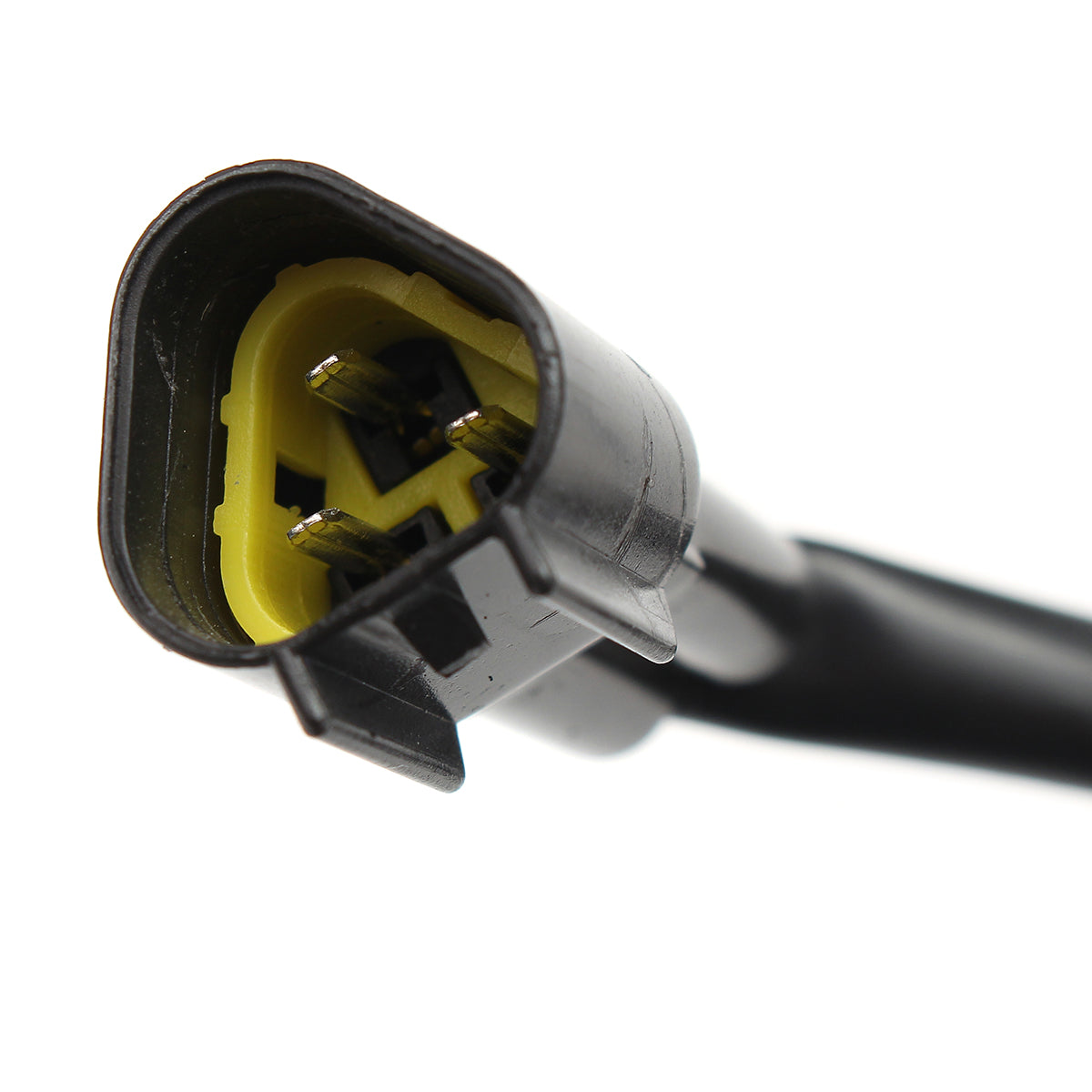

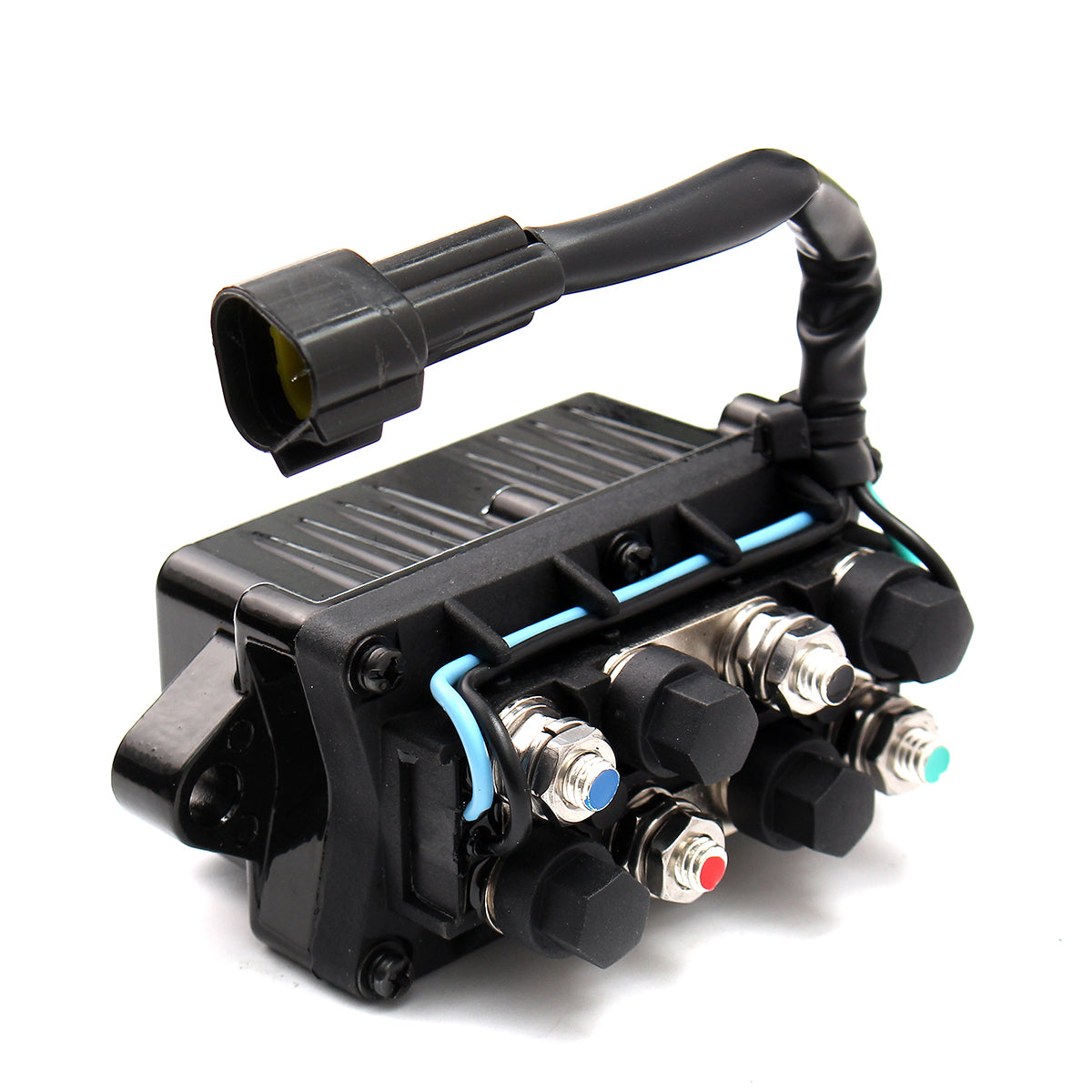

Trim Relay Assy 3pin For Yamaha 61A-81950-00-00 Outboard 4 Stroke : Perfect Timing
Trim Relay Assy 3pin For Yamaha 61A-81950-00-00 Outboard 4 Stroke : Perfect Timing
Regular price
$1,029.00 USD
Regular price
$1,715.00 USD
Sale price
$1,029.00 USD
Unit price
per
Couldn't load pickup availability
Description:Method: Red and black is connected to the anode and cathode of the accumulator,
the blue and green one are connected with a motor, if the lifting direction are not consistent,
the blue and green line can be exchangedThe relay operation is intermittent, continuous working time is not more than 1 minutes,
the actual operation of the whole time is not more than 15 secondsThis relay is not removable, do not remove these 6 screws, otherwise will lead to damage?Specification:Material: Aluminum Bronze + PlasticEngine: 4 StrokeConnector Model By Default To: DJ7031Y-2.3-11Rated Voltage: 12V ??20%Rated Current: 120AWaterproof Grade: IP67?Fitment:For YAMAHA 40-90 HP Power Trim and Tilt RelayF-150 HP 2004-2009F-225 HP TLR MODEL 2007-2009F-250 HP 2005-2009F-25 HP 2009F-40 HP 2009F-50 HP 2005-2009F-60 HP 2005-2009F-75 HP 2005-2009F-90 HP 2005-2009?Package Included:1 X Trim Relay
the blue and green one are connected with a motor, if the lifting direction are not consistent,
the blue and green line can be exchangedThe relay operation is intermittent, continuous working time is not more than 1 minutes,
the actual operation of the whole time is not more than 15 secondsThis relay is not removable, do not remove these 6 screws, otherwise will lead to damage?Specification:Material: Aluminum Bronze + PlasticEngine: 4 StrokeConnector Model By Default To: DJ7031Y-2.3-11Rated Voltage: 12V ??20%Rated Current: 120AWaterproof Grade: IP67?Fitment:For YAMAHA 40-90 HP Power Trim and Tilt RelayF-150 HP 2004-2009F-225 HP TLR MODEL 2007-2009F-250 HP 2005-2009F-25 HP 2009F-40 HP 2009F-50 HP 2005-2009F-60 HP 2005-2009F-75 HP 2005-2009F-90 HP 2005-2009?Package Included:1 X Trim Relay
?
?
?
