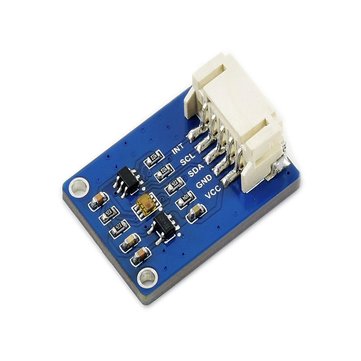

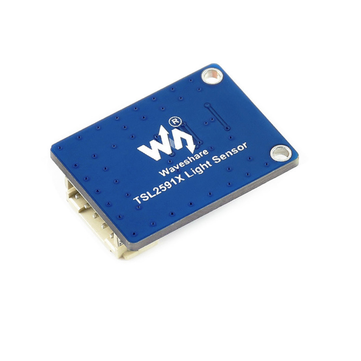

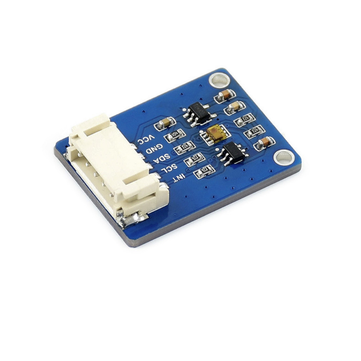

TSL2591X Light Sensor with PH2.0 5PIN Cable 600M:1 Wide Dynamic Range 88000Lux I2C Interface 3.3V 5V

Features:


Work with TSL25911FN,Compatible with Infrared Ray and Human Visible Light (Better than TSL2561)
Built-in ADC, Directly Output through I2C Interface, Great Anti-interference Performance
Level of Sensitivity up to 188uLux 600M:1 Wide Dynamic Range
Built-in Infrared Photodiode and Bandwidth Photodiode.Accurate Measuring Performance
With Interrupt Output,Upper and Lower Threshold Could Be Programmed
Electric Level Switch Circult Included
?

Specifications:

Sensor: TSL25911FN
Communication Interface: I2C (Address:0x29)
Range:0-88000Lux
Working Voltage:3.3V/5V
Size: 27x20mm
Fixing Hole Diameter:2mm
?

For more info please click:
?

?
?
Connection:

VCC: 3.3V/5V
GND:GND
SDA: MCU I2C cable
SCL: MCU I2C Clock
INT: Interrupt (if need)
?

Package Included:

TSL2951X Light Sensor x1
PH2.0 5PIN Cable x1
