UNI-T UT622A Handheld LCR Digital Bridge Frequency Inductance Resistance Capacitance Tester Multim

Description:

UT622 series LCR digital bridge is a convenient hand-held measuring instrument for measuring inductance, capacitance, resistance and other component parameters. It is powered by a 3.7V 1800mAh lithium polymer battery or an external power adapter. It can be used in desktop applications. , The instrument test frequency, parameters, and speed are selected immediately by pressing; at the same time, it also has a tolerance mode for component sorting, and a recording mode can assist in obtaining readings; the easy-to-operate open-circuit and short-circuit clear function improves the measurement accuracy; the practical configuration menu can be set Fixed key tone, automatic shutdown and other operations.

Features:

Handheld LCR tester, small size

2.8 inch TFT LCD display

Chinese and English optional operation interface

Up to 100kHz test frequency

5-digit reading resolution

The highest measurement accuracy reaches 0. 1%

Maximum test speed 20 times/sec

Constant 100?? signal source impedance

Equipped with 1800mAh lithium polymer battery

Tolerance sound and light alarm and counting function

Record statistics function

Manual and automatic trigger mode

Suitable measurement parameters can be automatically selected according to the nature of the component

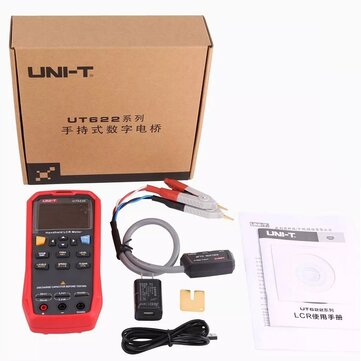

Package included:

1 x?UT622A Multimeter?(Battery not included)

1 x?Probe

1 x?USB cable

1 x?Manual

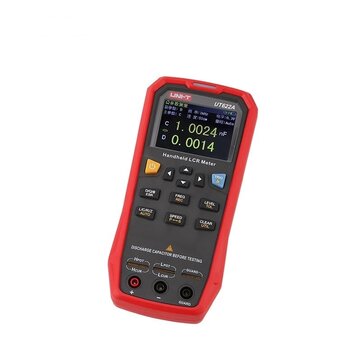

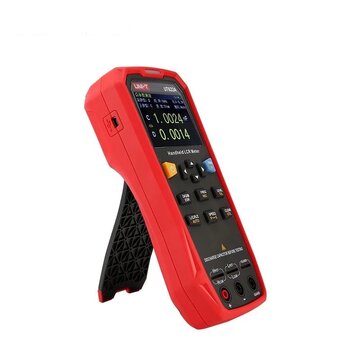

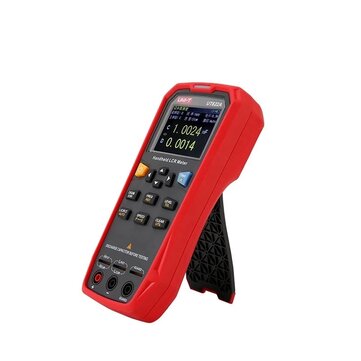

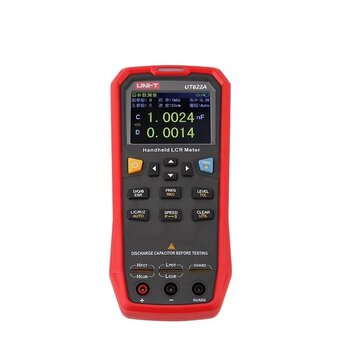

Details picture:
