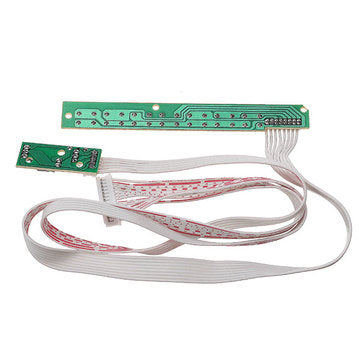

Universal 7 Keys V29 V56 V59 TV Switch Keypad Board With Interface

Universal 7 Keys V29 V56 V59 TV Switch Keypad Board With Interface

Description:

7 Keys Keypad Board, can be directly used in V29 V56 V59 TV driver board , with interface, can be welding infrared receiving head

PIN	Symbol	Description
1	+ 5 V	+ 5 V POWER SUPPLY FOR IR
2	IR - IN	IR INPUT
3	GND	GROUND
4	K0	POWER
5	LEDR	RED LED
6	LEDG	GREEN LED
7	GND	GROUND
8	K1	MANU
9	K2	INPUT SOUR
10	K3	VOL+
11	K4	VOL-
12	K5	CH+
13	K6	CH-
14	K7	RESERVED

Package included:

1 x?7 Keys?Keypad Board
