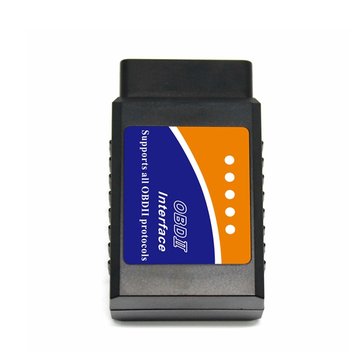

V03HW Car WIFI_OBDII Scanner PICI8F25K80 Main Control Chip Diagnostic Tools for Android Windows IOS

Feature: 1. Small volume and highest integrated chip, with independent appearance patent, utility model patent
and software copyright. CE, FCC,RoHS certification 2. The software can do the following: 3. Read error diagnostic codes - generic and manufacturer specific, and show their meaning (the database
has more than 3000 common code definitions) 4. Clear the error code and close the MIL ( check engine indicator) 5. Display current sensor data, including: 6. Engine RPM (RPM) 7. The calculated load value 8. Cooling temperature 9. Fuel system status 10. The speed of the car 11. Short term fuel situation 12. Long-term fuel situation 13. Intake manifold pressure 14. Fuel injection advance time 15. Inlet temperature 16. Air velocity 17. Absolute position of throttle valve 18. Oxygen detection voltage associated with a short-term fuel state 19. Fuel system status 20. Fuel pressure 21. There are many other data on fuel consumption monitoring...
Agreement Support:
OBDII Supported?Agreement:
1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2(5 baud init, 10.4Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID,? 500 Kbaud) 7. ISO15765-4 CAN (29bit ID,? 500 Kbaud) 8. ISO15765-4 CAN (11bit ID,? 250 Kbaud) 9. ISO15765-4 CAN (29bit ID,? 250 Kbaud)
Specification:

SSID	WIFI_OBDII?
Port	35000
Main Control Chip	PICI8F25K80
The Software Platform? ? ? ? ? ?	Support Android, Windows, IOS? ? ? ??
Working Voltage	9V-16V
Working Current	65mA
Standby Current	45mA
Working Temperature	-40a??-85a??
Working Humidity	<60%
Size?	About 45*25*75MM

Package Included:
1 X Car?WIFI_OBDII?Diagnostic?Scanner








, , , , ,
