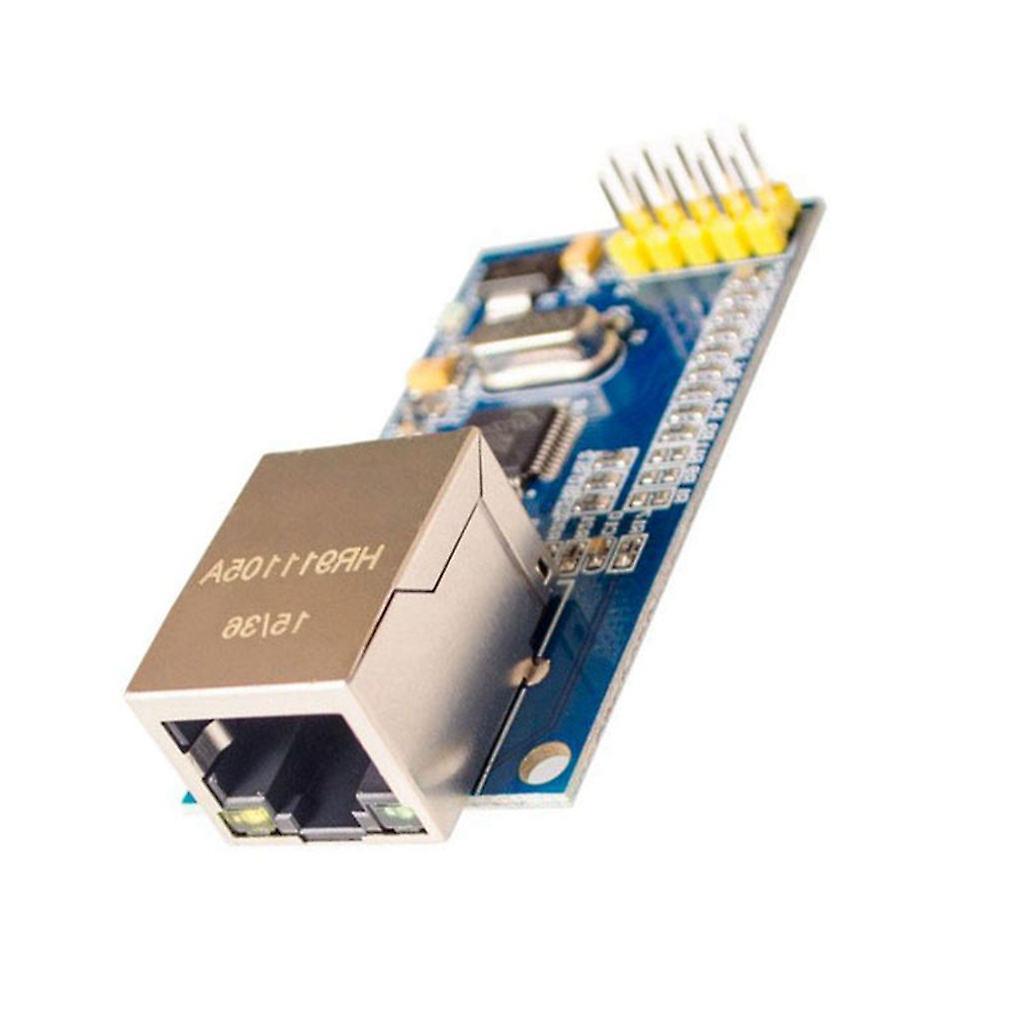

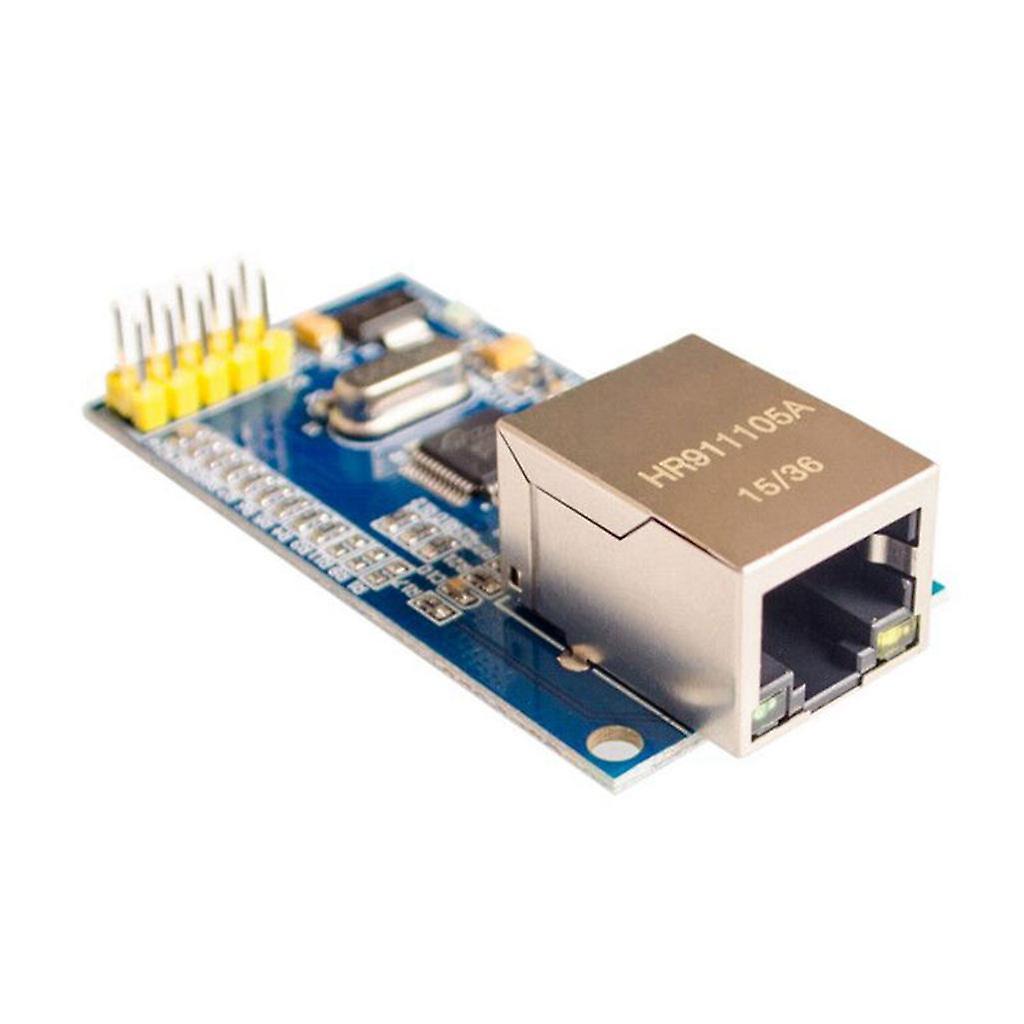

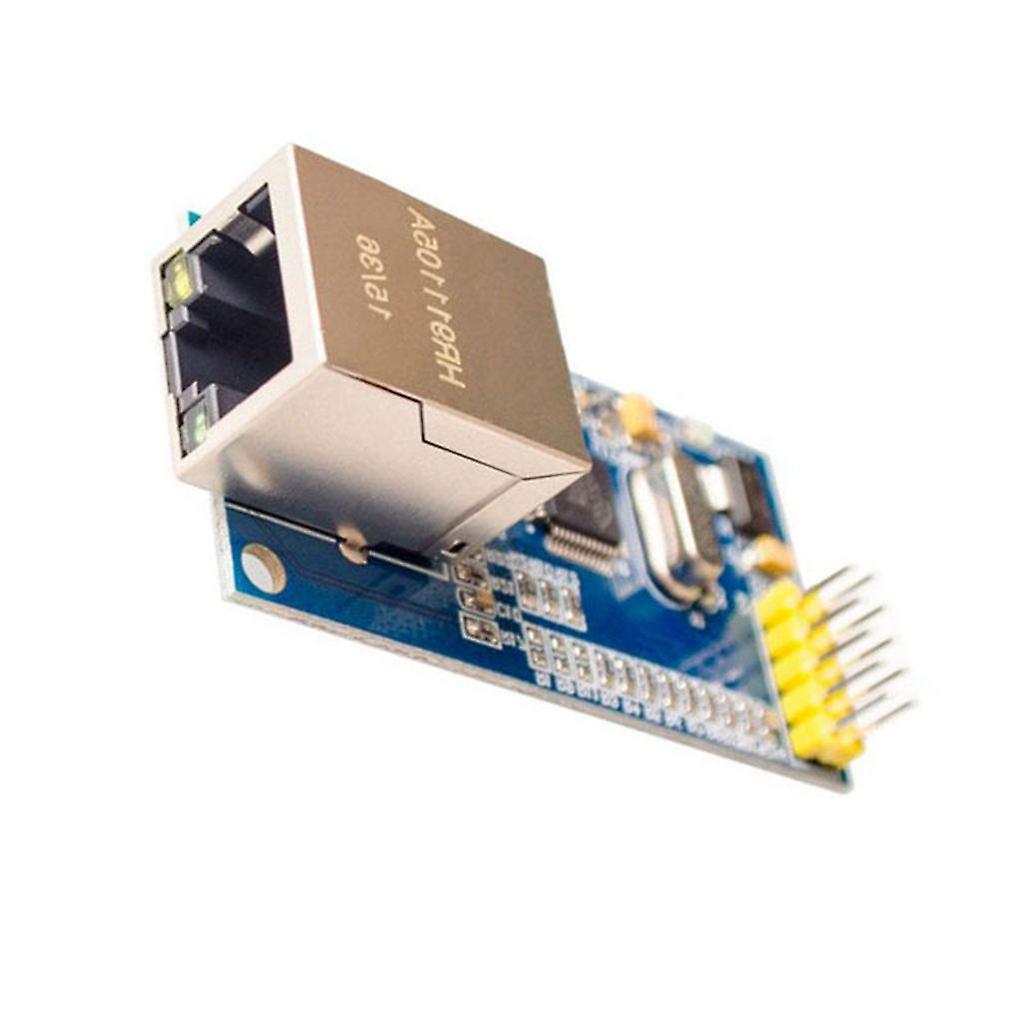

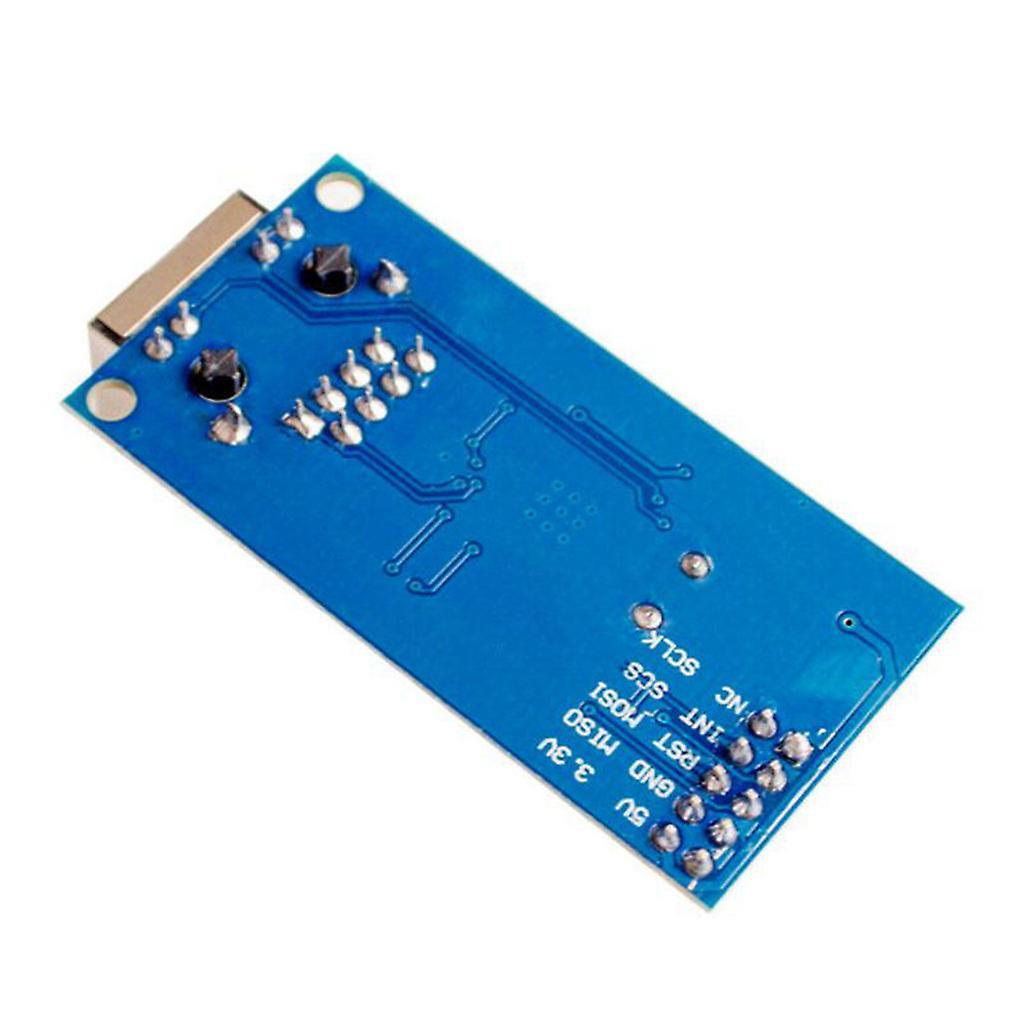

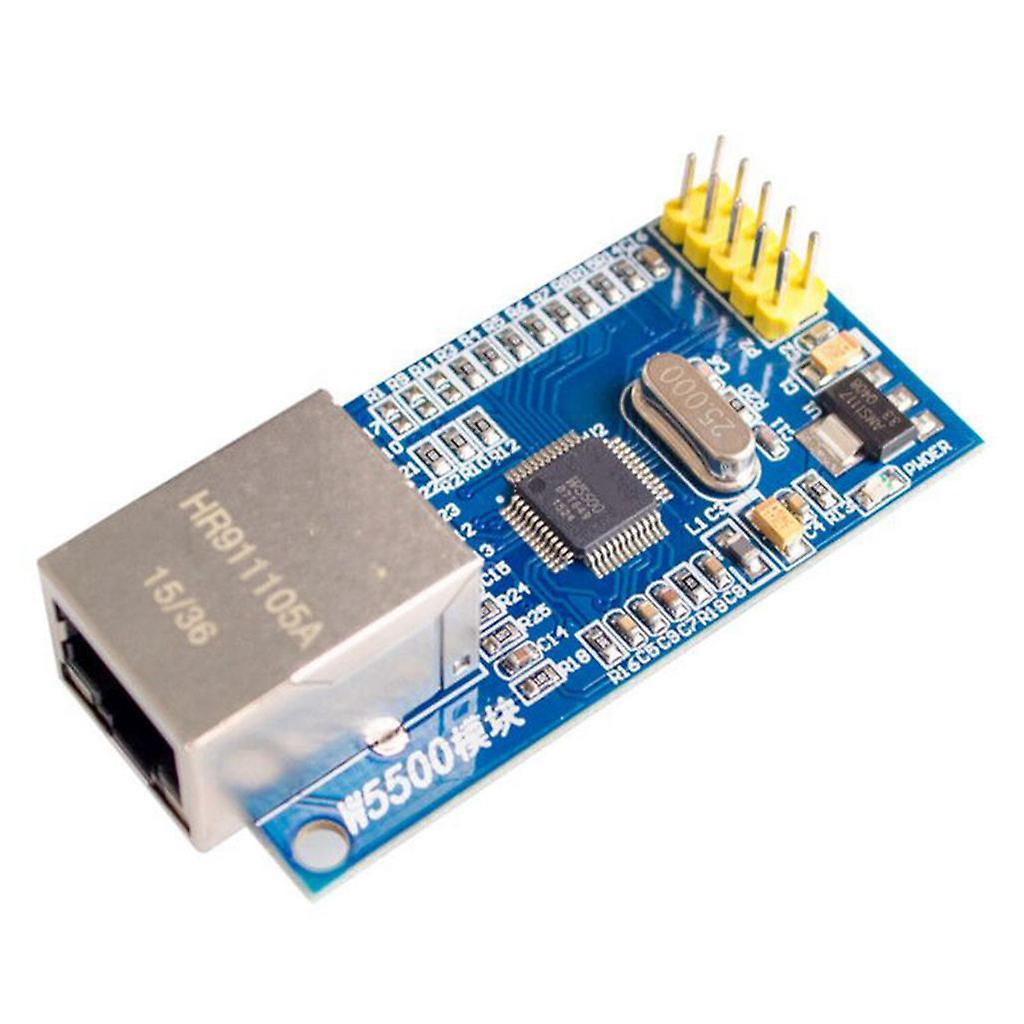

W5500 Ethernet Network Module Hardware Tcp/ip 51/stm32

100% Brand new and high quality Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoESupports 8 independent sockets simultaneouslySupports Power down modeSupports Wake on LAN over UDPSupports High Speed Serial Peripheral Interfac(SPI MODE 0, 3)Material: PC + metalInternal 32Kbytes Memory for TX/RX Buffers10BaseT/100BaseTX Ethernet PHY embeddedSupports Auto Negotiation (Full and half duplex, 10 and 100-based )Not supports IP Fragmentation3.3V operation with 5V I/O signal toleranceLED outputs (Full/Half duplex, Link, Speed, Active)48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)Chip type: W5500Supports both 3.3V & 5V.10BaseT/100BaseTX Ethernet PHY embeddedSupports automatic response (full duplex / half duplex mode)Supports 8 independent sockets simultaneouslyInternal 32Kbytes Memory for Tx/Rx BuffersPower off mode: supportNetwork wake: supportSPI interface (SPI MODE 0, 3),convenient connection with MCUSize: 55mm x 28mmColor: BluePackage Contents: 1 x SPI to Ethernet/TCP/IP W5500 ModuleOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
