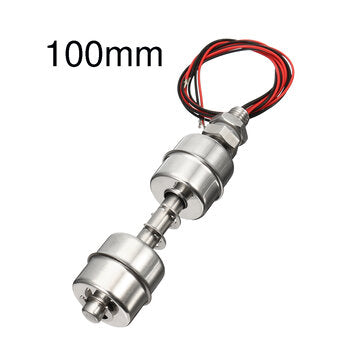

Water Tank Vertical Float Switch Stainless Steel Liquid Sensor Level Controller (SIZE: 100MM)

SELECTED OPTION:
SIZE: 100MM

Specifications: Material: Stainless Steel Max. Contact Rating: 10W / 50W Max. Switching Voltage: 240V AC Max. Breakdown Voltage: 220V DC Max. Switching Current: 0.5A Max. Carry Current: 1A Max. Contact Resistance: 100m?? Operating Pressure: 10kg/cm Max. Pressure: 0.2 Mpa
? Applicable Proportion: 0.75 Operating Temperature: -10 ~ +120a?? Switch Operation: Reversible Wire: Teflon PTFE High Temperature Line Installation Method: Vertical Mounting Thread Diameter: 10mm / 0.39 inch
? 6 Size Optional:? 100mm / 3.94 inch 150mm / 5.91 inch 200mm / 7.87 inch 250mm / 9.84 inch 300mm / 11.81 inch
? Features: a??? Used to sense the level of liquid within a tank. a??? Light weight and simple working principle, high reliability. a??? The switch may activate a pump, an indicator, an alarm, or other device. a??? This float switch is a simple structure, easy installation liquid level controller. a??? Widely used in electronic, electrical, chemical, water treatment, drainage and other fields. a??? The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank,
? depending on whether you for wish to detect the water's rise or fall. ? Package Included: 1 Pc x Floating Switch
