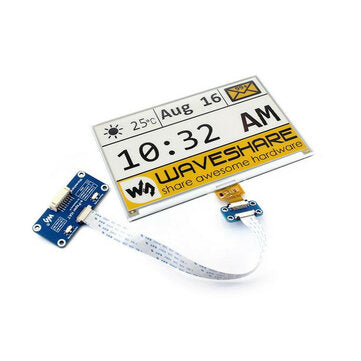

Waveshare 7.5 Inch 640384 E-paper Ink Screen Yellow Black and White SPI Interface with Driver Bo

Features: ? No backlight is needed, and the display content of the last screen can be kept for a long time after power off Very low power consumption, basically only consumes power when refreshing Based on standard interface design, compatible and directly plugged into Raspberry Pi 2nd Generation B/3rd Generation B/Zero/Zero W Leads out SPI control interface, can be connected to Raspberry/Arduino/Nucleo and other main control boards Provide complete supporting information manual (Raspberry/Arduino/STM32 and other sample programs)
Parameter:
Working voltage: 3.3V Communication interface: SPI Dimensions: 170.2mm ?? 111.2mm Display size: 163.2mm ?? 97.92mm Point pitch: 0.255 ?? 0.255 Resolution: 640 ?? 384 Display color: yellow, black, white Gray level: 2 Global refresh: 16s Refresh power consumption: 38mW(typ.) Standby power consumption: <0.017mW Viewing angle: >170?￣
Interface Description: ? VCC: 3.3V GND: GND DIN: SPI communication MOSI pin CLK: SPI communication SCK pin CS: SPI chip select pin (active low) DC: data/command control pin (high level means data, low level means command) RST: External reset pin (low level reset) BUSY: busy status output pin (low level means busy)
Package includes:
1 x 7.5inch e-Paper (C) 1 x e-Paper Driver HAT 1 x RPi copper pillar package (2PCS set) 1 x PH2.0 8PIN cable 20cm
