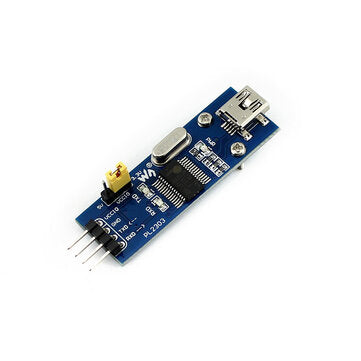

Waveshare PL2303TA Supports WIN8 USB to Serial Port USB to TTL PL2303 For Flashing Board Mini Conv

Product Features:
Using PL2303TA (compatible with PL2303HXA) Support windows XP/7/8/8.1/10/... Support 3 power supply modes: 5V external power supply; 3.3V external power supply; external power supply (requires 3.3V-5V) With 3 LEDs: TXD LED, RXD LED, POWER LED
Instructions for use: (Take access to MCU as an example)
VCCIO: output 3.3V or 5V (module is powered by USB, jumper cap must be jumped to 3.3V or 5V) GND: Connect to GND TXD: Connect to MCU.RX (Signal flow direction: MCU.RX << PL2303 << PC.TX) RXD: Connect to MCU.TX (Signal flow direction: MCU.TX >> PL2303 >> PC.RX) Note: The module is from USB to TTL level, do not connect directly to RS232 level, otherwise the module will be burned.

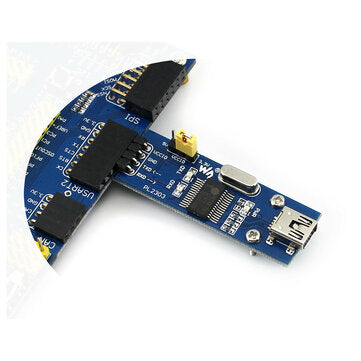

Compatible and can be directly connected to the following products:
Open051C Open103C Open103R Open103V Open103Z Open107V Open1114 Open11C14 Open1343 Open16F877A Open1768 Open1788 Open18F4520 Open207I-C Open207V-C Open207Z-C Open2440 Open32F0-D Open32F3-D Open32L-D Open3S250E Open3S500E Open407I-C Open407V-C Open407V-D Open407Z-C Open4337-C Open8S208Q80 OpenEP2C8-C OpenEP3C16 OpenEP3C16-C OpenEP4CE10-C OpenEP4CE6-C OpenEPM1270 OpenM128
Package includes:
1 x?Converter Board
