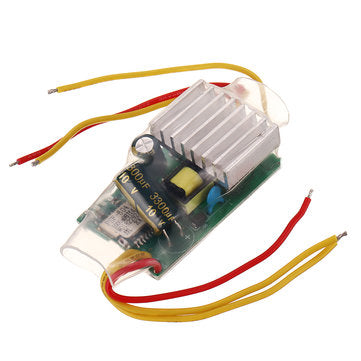

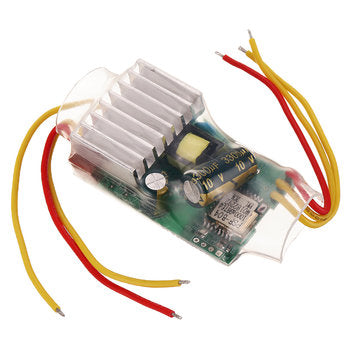

WiFi Dual Single FireWire Smart Switch Modified Parts Triac APP Phone Remote Control Support Ewelink

Feature:

Input voltage: AC110-220V Output voltage: AC110-220V Maximum load: 100W

Function:



1. L: Channel 1 & Channel 2 FireWire common input; 2. L1: Firewire output of channel 1; 3. L2: Firewire output of channel 2; 4. GND: Channel 1 & Channel 2 wall mechanical switch common input terminal; 5. SW1: the output end of channel 1 wall mechanical switch; 6. SW2: Channel 2 wall mechanical switch output; 7. Network configuration / local on / off key: Press and hold for more than 7S until the network indicator flashes quickly to configure the WIFI account and password for the WiFi switch through the APP; short press can be used to control channel 1 on / off 8. GND, RX, TX, 3V3: ESP8285 WiFi module program programming port, which can be used for secondary development?firmware flashing (the network configuration key must be kept pressed during the flashing). ? Package includes:

1 x?Smart Switch?
