Wireless COMMU Module Extend RS485/TTL CAN/I2C Port with MCP2515 TJA1051 SP3485 Development Board EP

Description:

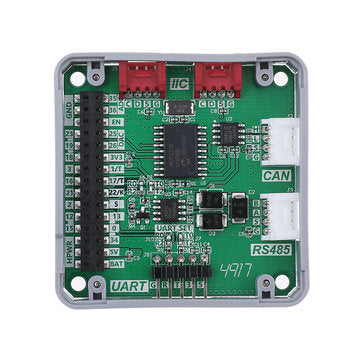

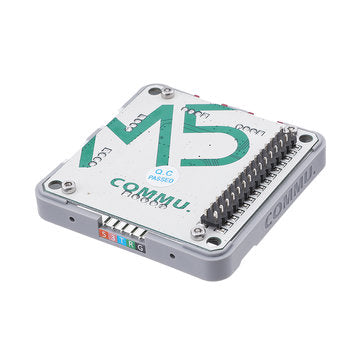

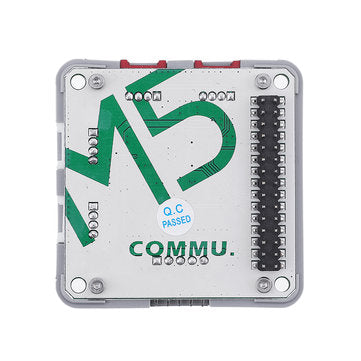

COMMU?is a Muti-Communication-Interface-Converter. Integrated with 2IIC, 1TTL, 1CAN, 1RS485. Apparently COMMU has packed with most of series communications.

Default connection: TTL - UART0, RS485 - UART2. Since ESP32 pin map is allowed for re-assign, you can re-assign or re-mapping the TTL or RS485 interface to other pins.

Be care about TTL Interface. It is a UART Interface actually by default. But you can switch it to connect with UART2 after changed those jumpers(J6, J7, J9, J10).

Product Features:

• 2x I2C Interface
• 1x CAN Interface
• 1x RS485 Interface
• 1x TTL Interface

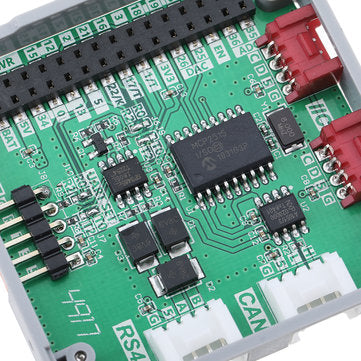

• CAN controller: MCP2515-1/SO
• RS485 Transceiver: SP3485EN-L/TR
• Product Size: 54.2mm x 54.2mm x 12.8mm
• Product weight: 13.5g

Package?Included:

• 1x M5Stack COMMU Module

PinMap:
