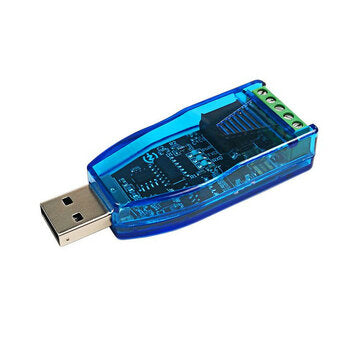

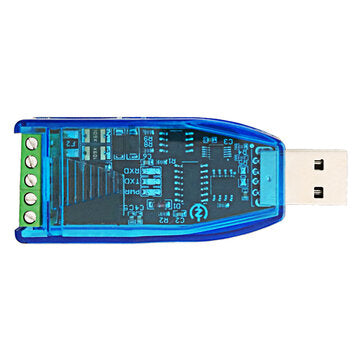

WUZHII ZK-H485 USB to RS485 Communication Module TVS Protection Short Circuit Protection Automatic

Feature:

1. Power supply: USB 5V

2. Transmission distance: maximum 1200 meters (under 9600bps conditions)

3. Chip solution: CH340E

4. Communication protocol: pure hardware equipment, not restricted by protocol

5. Baud rate: up to 256000bps

6. The power supply and signal are fully isolated, and the anti-interference ability is stronger

7. Protection: TVS transient suppression protection, electrostatic ESD protection, surge protection, AB signal line short-circuit and short-circuit protection with the power supply (short-circuit does not burn)

8. Temperature range: -40a??-80a??

9. Support system: support hot swap, support win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/LINUX/ANDROID/ MAC X system, USB interface can be hot swapped

10. Automatically identify and control the direction of data transmission, without any handshake signals (such as RTS, DTR, etc.) without jumper settings to achieve mode conversion, to ensure compliance with existing communication software and interface hardware.

11. Weight: 17g

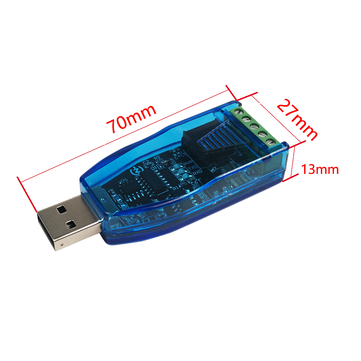

12. Size: length, width and height 70*27*13mm

Package includes:

1 x?ZK-H485 USB to RS485 Communication Module
