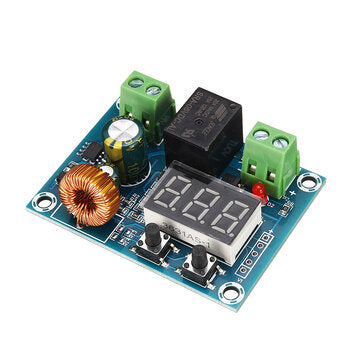

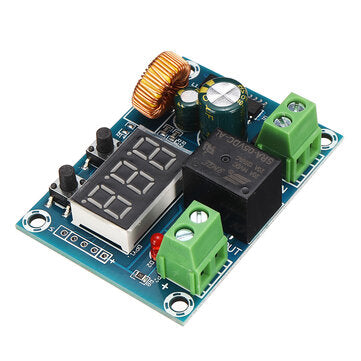

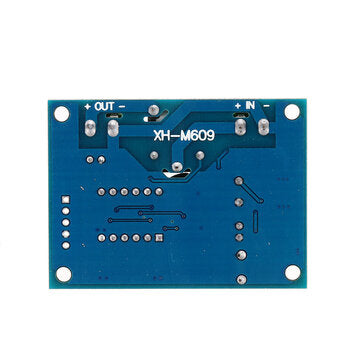

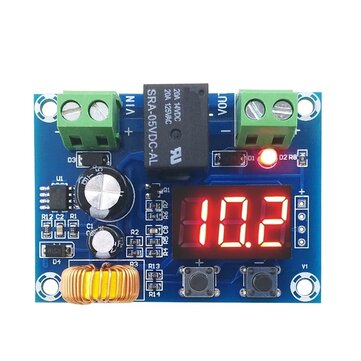

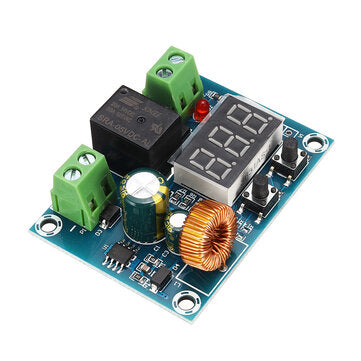

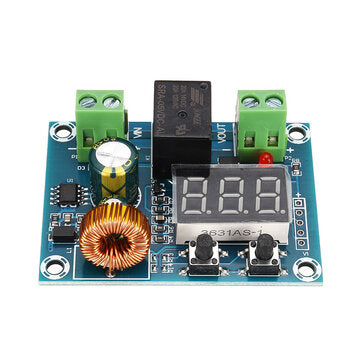

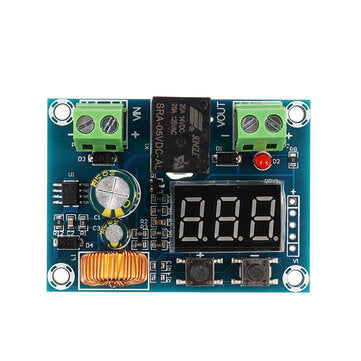

XH-M609 DC 12V-36V Charger Module Voltage OverDischarge Battery Protection Precise Undervoltage Prot

Features:
1. Automatic power off. 2. Discharge protection. 3. Prolong battery life.
Specification:

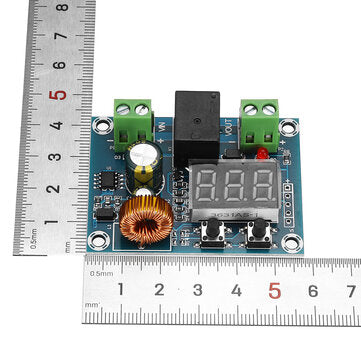

Product name: Battery overdischarge protection module Model: XH - M609 Power supply voltage: DC12 V- 36 V battery Output voltage: Equal to power supply voltage Control precision: 0.1 V Power consumption: Less than 1.5 W Scope of application: Various storage batteries, lithium batteries Net weight: 28 g Size: 57 * 42 * 19 mm
Instructions for use: + Key: Press once to display the protection value, long press to set the protection value - Key: Press once to display the return difference value, long press to set the return difference value
Setting example: When the stop voltage is lower than 11V and the voltage is higher than 11.6V, it starts? Method: long press + screen flicker set to 11, then long press-screen flicker set to 0.6 to OK Is the voltage lower than 12.5V disconnected, and the voltage higher than 14.8V starts? Method: long press + screen flicker to set the stop value to 12.5, wait until the screen does not flicker, then long press-screen flicker, set the hysteresis voltage to 2.3V
Package included:
1 x Battery overdischarge protection module
