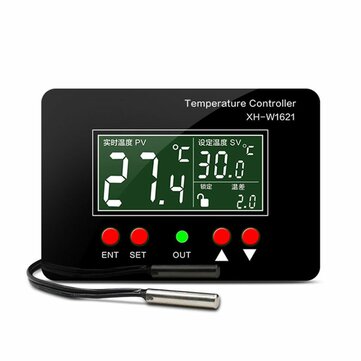

XH-W1621 DC12V/AC220V Digital Thermostat PID Constant Temperature Controller fo... (VOLTAGE: 12-24V)

XH-W1621 DC12V/AC220V Digital Thermostat PID Constant Temperature Controller fo... (VOLTAGE: 12-24V)

$528.00 USD
$880.00 USD $528.00 USD
Sale Sold out

SELECTED OPTION:
VOLTAGE: 12-24V

Feature:
Adopts PID intelligent control method, thyristor output, has the functions of data lock, high/low temperature alarm, and temperature correction, so as to prevent false operation and risks. Accurately control the temperature, sensitive. Temperature correction, temperature difference alarm. Easy and simple to install and operate, very practical and useful. Can be embedded in the chassis equipment, suitable for poultry hatching, heating platform, drying oven, etc.
Set up and usage:
1. Connect the power supply and heating load according to the wiring diagram note that IN is the power supply interface, and OUT is the plus thermal load interface.
2. How to set the heating temperature? After power on, the main screen on the left will display the measured temperature. Press the SET button (SET) in the upper right corner of the screen to set the fixed temperature starts to flash, and then use the up and down keys to adjust and set the desired heating temperature value.
3. How to set high temperature alarm? Press the set button to switch to the temperature difference setting in the lower right corner of the screen, and the temperature difference setting will start to flash. Set the temperature difference value by up and down keys. (For example: the set heating temperature is 30a??, the temperature difference is 5a??, then the high temperature alarm value is 30 + 5=35a??, when the detection temperature is higher than 35a??, the ?buzzer starts to alarm, you can manually press any button to cancel the alarm, or wait until the temperature?When it drops below 35a??, the thermostat will automatically cancel the alarm. )
4. How to perform temperature correction? Press the set button to switch to the temperature correction in the lower right corner of the screen, the temperature correction value starts to flash, and then press the up and down keys to set the temperature correction value. If the actual temperature is 28??C and the probe detection temperature is 28.2??C, then set the temperature value to -0.2; if the detection temperature is low, just adjust the correction value higher.
5. How to lock data? Long press ENT (enter key) for 5 seconds, the data is locked, all keys are invalid; long press the confirm key 5 Seconds, the data is unlocked.
6. How to restore factory settings? Press the up and down buttons at the same time for 5 seconds, the screen displays 888 as the factory restoration is complete.
Specifications:
Item Type: Digital Thermostat Model Number: XH-W1621 Material: Plastic+metal Voltage: DC12V, AC220V(Optional) Temperature range: 0-110??C/32-230a?? Temperature measurement accuracy: minus or plus 0.1??C/32.18a?? Temperature control range: 0-110??C/32-230a?? Temperature control accuracy: minus or plus 0.1??C/32.18a?? Temperature probe: NTC10K 1 meter waterproof probe Suitable Environment: -15-55a??/5-131a??(No frost) Output type: thyristor direct output Output power: up to 1000W Quantity: 1 Pcs Size: 110 x 82 x 38mm/4.3x3.2x1.4in (1cm=10mm=0.39inch) Color: Black
Package Included:
1 x Digital Thermostat
