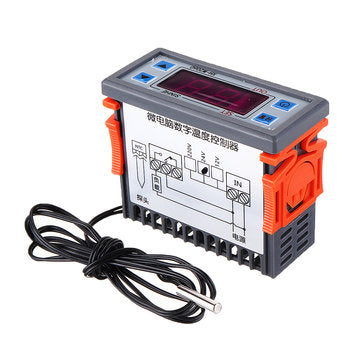

XH-W2060 Embedded Digital Thermostat Cabinet Freezer Cold Storage Thermostat Tempe... (VOLTAGE: 12V)

SELECTED OPTION:
VOLTAGE: 12V

Feature:

Product Name: Digital display embedded cabinet thermostat Product model: XH-W2060 Temperature range: -19~99 ??C Control range: -19~99 ??C Temperature control accuracy: 1 ??C Measurement input: NTC10K waterproof probe L = 1 m Refresh rate: 4 times / sec Use environment: -30~60??C Humidity 20%-85% Use environment: 12/24/220V optional Output type: Relay output up to 10A Appearance size: 77 x 62 x 34.5mm Opening size: 71 x 29mm Other functions: Power-off memory, state memory, temperature correction, delay start

Code	Code Description	Setting Range	Factory settings	Unit
P0	Operating mode	C/H	C	?/
P1	Hysteresis setting	0.1-50	2	??C
P2	Temperature correction	?-9~9	0	??C
P3	Delayed start	0-9	0	Minute
P4	High temperature alarm	?-19~99	99	??C

P0: Temperature control mode C: Cooling mode H: Heating mode ? P1: Difference setting For example: P1=5 Cooling mode: When the detected temperature reaches the stop temperature, the relay is disconnected, the cooling is stopped, the temperature rises by 5 ??C, and the relay closes again. Heating mode: When the detected temperature reaches the stop temperature, the relay is disconnected, the heating is stopped, the temperature drops back to 5 ??C, and the relay closes again. ? P2: Temperature correction If the detected temperature and the actual temperature deviate, you can use this function to correct. Actual value = measured value + corrected value. For example, if the measured temperature is 25 ?? C and the actual temperature is 26 ?? C, then P2 can be set to 1, then The final temperature is 25+1=26 ? P3: Delayed start This function is used for compressor cooling. If it is used in a refrigerator freezer, this value must be set. According to the compressor back pressure, the value is usually set to 3-6 minutes. ? P4: High temperature alarm Set the high temperature alarm value. When the detected temperature exceeds this value, the screen flashes and the buzzer sounds an alarm.
Package includes:

1 x?Digital display embedded cabinet thermostat
