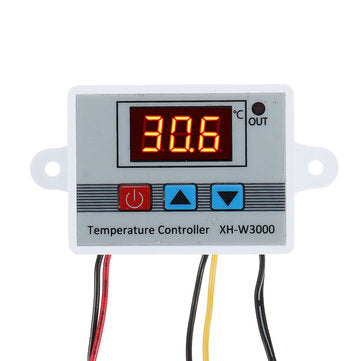

XH-W3000 -50~100 Degree Micro Digital Thermostat High Precision Temperature Cont... (VOLTAGE: DC24V)

XH-W3000 -50~100 Degree Micro Digital Thermostat High Precision Temperature Cont... (VOLTAGE: DC24V)

$414.00 USD
$690.00 USD $414.00 USD
Sale Sold out

SELECTED OPTION:
VOLTAGE: DC24V

Feature:

Product Name: Microcomputer Temperature Controller Product model: XH-W3000 Temperature range: -50~100?￣C Temperature control range:?-50~100?￣C Temperature measurement accuracy: +-0.2 ?￣C Temperature control accuracy: +-0.1 ?￣C Temperature probe: NTC10K (B3950) 1 meter waterproof probe Supply voltage: DC12V/DC24V/AC220V Output power: DC12V: 120W/DC24V: 240W/AC220V: 1500W Output type: direct output Appearance size: 60 x 45 x 31mm Opening size: 73mm (aperture 4mm)

Package includes:

1 x?Microcomputer Temperature Controller

Wiring:









Key Description: ? Up key: Short press to display the starting temperature, long press to set the starting temperature. Down button: short press to display the stop temperature, long press to set the stop temperature. Shutdown button: Press to turn off the thermostat, and then press to turn on the thermostat.

Instructions: ? Start temperature Start temperature > stop temperature = cooling mode (output is connected to the cooling unit) ? 1. Connect the power supply and heating or cooling equipment according to the wiring diagram above (note the positive and negative poles) 2. Press and hold the up key to set the starting temperature. When the screen number flashes, press the up and down keys to set the starting temperature you want. After setting, wait for 5 seconds to brake the system. 3. Press and hold the key to set the stop temperature. When the screen number flashes, press the up and down keys to set the desired stop temperature. After setting, wait for 5 seconds to automatically save the data. 4. Restore the factory: Colleagues press and hold the up and down keys for 5 seconds, when the screen displays 888, the factory is restored. 5. Press the power off button to turn off the thermostat and press to turn on the thermostat.
Tips:

888: In the case of power-on, press and hold the up and down keys for about 3 seconds, the digital tube displays 888, and automatically jumps to the detection temperature, that is, the factory settings are restored successfully. LLL: Describe the sensor is open?circuit, repair the sensor, or replace the sensor HHH: The sensor is short?circuit.
