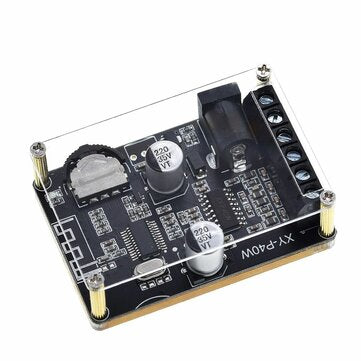

XY-P40W 40Wx2 Dual Channel bluetooth 5.0 Stereo Audio Power Digital Ampli... (VERSION: WITHOUTSHELL)

SELECTED OPTION:
VERSION: WITHOUTSHELL

Specifications:

Product Name	Bluetooth stereo audio power amplifier board
Product Model	XY-P40W
Supply voltage	DC: 5~24V
Bluetooth version	5.0
Connect distance	15 meters(visible)
Output mode	stereo
Output power(@1KHz)	20W*2? @12V 4??
	30W*2? @16V 4??
	30W*2? @21V 8??
	40W*2? @24V 8??
Speaker selected(30W~150W)	4??(5~16V supply)
	8??(5~24V supply)
protection	Power reverse protection
	Short circuit protection
	Thermal protection

NOTE: If supply power is low and output power is big, noise may be caused, turn down the volume and a bigger supply will be better ? Operation: ? Supply the module, the blue LED is on, and it goes into Bluetooth mode;Waiting for pairing after playing the audio tone; Turn on phone Bluetooth,XY-P40Wwill be searched and display; Click the XY-P40W,it will connect to the board. It connects successfully with an audio tone; After this you can play the music. The power amplifier board will prepare for the next pairing with an audio tone, When the Bluetooth is disconnected. ? Note: ? 1. Keep 2 meters away from router to avoid WIFI interference 2. 5~24VDC is recommended; upper than 26V, it will be damaged. 3. Driving 4?? load, power supply must be under 16V; and driving 8?? load, supply must be under 24V. 4. The supply current must be 2A at least. 5. The cable connecting speaker with module should be within one meter. 6. ESD protection, please release ESD on your hands before you contact the module. 7. 40W and upper power speakers is recommended. ? Fault Check: ? 1. Check the power supply if the LED is not bright. 2. If the LED is on, but Bluetooth device XY-P40Wis not searched, check if the router is in the near, and keep away from the router. 3. The speaker tapped when power on. Check that the speaker load is so small that the current through the speaker is enough for chip goes into DC protection. Try to lower the supply and restart. Check that if the power supply is low that cannot drive the speaker. 2A power supply current is ok. 4. Floor noise in speaker when playing Play another music to verify the noise is not related with music itself. Replace the speaker to check If the noise is caused by speaker itself. Replace the power supply to check If the noise is caused by unstable power. 5. It plays intermittently Check if the temperature of the board is high, and it goes into thermal protection. Check if the Bluetooth is unstable, adjust the angle between the connected device; And Check if a WIFI source is in the near.



Package Included:

1 x?XY-P40W bluetooth 5.0 Stereo Audio Power Digital Amplifier Board with/without Shell(not included remote controller)
