Features:
?
Use original TPA3116 and CSR4.0 Bluetooth module (CSR8630)
The power filter capacitor adopts 3300UF/25V and Japanese electrolytic capacitor
The main circuit of electrolytic capacitor signal adopts famous brand from Taiwan, and the main filter capacitor adopts Japanese electrolytic capacitor to ensure strong and continuous power support
The resistance uses five-ring metal resistors, and the main circuit uses a five-ring metal film resistor with an accuracy of ±1%, which ensures a good signal-to-noise ratio of the whole machine
PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents. First-class PCB quality
The red-grey ring special power discharge sense is used to ensure the sound is clear and powerful.
Using the latest Bluetooth version 4.0, the way to connect to Bluetooth is the same as that of ordinary devices
The input mode is analog and Bluetooth input function, and Bluetooth input has priority
Working method: Class D
Quiescent current: 50mA
Work efficiency: 90%
Rated output power: 2*50W+100W
Frequency response: 20Hz to 20KHz
Working voltage: DC18V to DC24V
Maximum output current: 3A
Receiving range 10 meters
Machine size: depth 108*width 90*height 39MM
?
Package Included:?
?

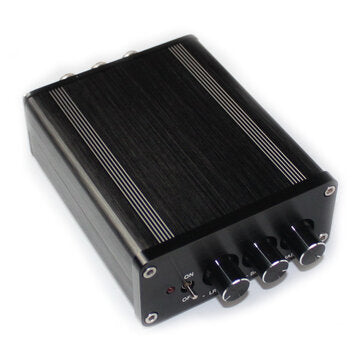

1 x Bluetooth Digital Amplifier
