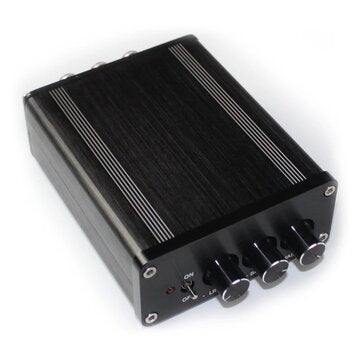

YJHiFi YJ00326 TPA3116 LM1036 2x50W Mini Tone Digital Power Amplifier Class D HIFI... (COLOR: BLACK)

Features:

?

Using original TPA3116 LM1036

The power filter capacitor adopts 3300UF/25V and Japanese electrolytic capacitor

The main circuit of electrolytic capacitor signal adopts famous brand from Taiwan, and the main filter capacitor adopts Japanese electrolytic capacitor to ensure strong and continuous power support

The resistance uses five-ring metal resistors, and the main circuit uses a five-ring metal film resistor with an accuracy of ±1%, which ensures a good signal-to-noise ratio of the whole machine

PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and full tin spraying process to ensure good passing performance of large and small currents. First-class PCB quality

The red-grey ring special power discharge sense is used to ensure the sound is clear and powerful

Working Method: Class D

Quiescent Current: 50mA

Work Efficiency: 90%

Rated Output Power: 2*50W

Frequency Response: 20Hz to 20KHz

Working Voltage: DC18V to DC24V

Maximum Output Current: 3A

PCB Size: 100*83MM

Machine Size: depth 108*width 90*height 39MM

?

Package Included:

?

1 x Power Amplifier
