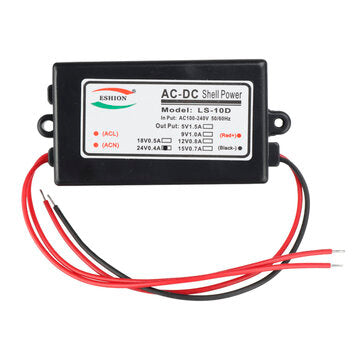

Yushun LS-10D 5V/9V12V/24V 9W Switching Power Supply Module High Efficiency LED Po... (VOLTAGE: 24V)

Yushun LS-10D 5V/9V12V/24V 9W Switching Power Supply Module High Efficiency LED Po... (VOLTAGE: 24V)

$396.00 USD
$660.00 USD $396.00 USD
Sale Sold out

SELECTED OPTION:
VOLTAGE: 24V

Features:
1. Wide input voltage range 2. With overload, short circuit, and undervoltage protection functions 3. Black plastic shell, small size and high efficiency 4. Full load aging test
Specification:
Brand: Eshion Model:?LS-10D Voltage:?5V1.5A LS-10D5,?9V1A LS-10D9,12V0.8A LS-10D12,24V0.4A LS-10D24 Input voltage: 100-220V
Input voltage range: 100~264V AC Output /Rated?power: 9W Output voltage: 5V,9V,12V, 24V Work efficiency: 73%,78%,80%,83% Output ripple noise: <100MVP Output voltage accuracy: &pm;1% Voltage adjustment rate: &pm;1% Load regulation rate: &pm;1.5% Rated??current: 1.5A, 1A, 0.8A, 0.4A
Working frequency: 47~63HZ Working temperature: -15a??~+40a?? Dimensions: 65mm*38mm*21.5mm Weight: 28g Shell color: Black

Package included:

1 x?Power Supply Module
