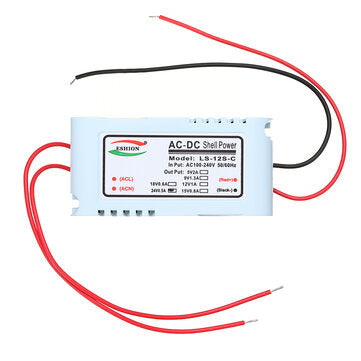

Yushun LS-12S Switching Power Supply Module 220V to 5V 9V 12V 24V 12W Monitoring L... (VOLTAGE: 24V)

Yushun LS-12S Switching Power Supply Module 220V to 5V 9V 12V 24V 12W Monitoring L... (VOLTAGE: 24V)

$396.00 USD
$660.00 USD $396.00 USD
Sale Sold out

SELECTED OPTION:
VOLTAGE: 24V

Features:
1. Wide input voltage range 2. With overload, short circuit, and undervoltage protection functions 3. Small size, high efficiency 5. High output voltage accuracy, low output ripple
Specification:
Brand: Eshion Model:?LS-12S? Voltage:?5V2A LS-12S5,9V1200mA LS-12S9,12V1A LS-12S12,?24V500mA LS-12S24 Input voltage: 86-264V
Input voltage range: 100~264V AC Output /Rated?power: 10W,10.8,12W,12W Output voltage: 5V,9V,12V, 24V Work efficiency: 77%,79%,81%,83.5% Output ripple noise: <100MVP Output voltage accuracy: &pm;1% Voltage adjustment rate: &pm;1% Load regulation rate: &pm;1% Rated??current: 2A, 1.2A, 1A, 0.5A
Working frequency: 47~63HZ Working temperature: -15a??~+50a?? Dimensions: 67mm*31mm*19mm Weight: 29.5g Shell color: White

Package included:

1 x?Power Supply Module
