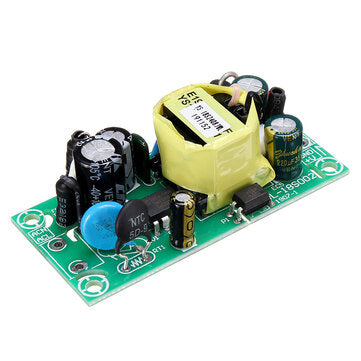

Yushun YS-18SWL 5V/12V/24V 18W Bare Board Switching Power Supply Module DC Monito... (VOLTAGE: 24V)

Yushun YS-18SWL 5V/12V/24V 18W Bare Board Switching Power Supply Module DC Monito... (VOLTAGE: 24V)

$334.00 USD
$556.67 USD $334.00 USD
Sale Sold out

SELECTED OPTION:
VOLTAGE: 24V

Features:
1. Wide input voltage range 2. With overload, short circuit, and undervoltage protection functions 3. Low power consumption, small size, high efficiency 4. Comply with CE certification
Specification:

Brand: Eshion Model:?YS-18SWL Voltage:?5V3A YS-18S05300WL,?12V1.5A YS-18S12150WL,?24V0.83A YS-18S24083WL Modulation method: pulse width modulation (PWM) type
Transistor connection mode: single-ended Input voltage: 110-240V Input voltage range: 85~264V AC Output /Rated?power: 17.5W,18W,20W Output voltage: 5V,12V,24V Work efficiency: 83% Output ripple noise: <60MV Voltage adjustment rate: &pm;1.1%
Load regulation rate: &pm;1.5% Product Certification: CE Output current: 3A, 1.5A, 0.83A Frequency?range: 47~63HZ Working temperature: -20a??~+40a?? Dimensions: 66.2mm*30.5mm*22mm Weight: 35g

Package included:
1 x?Power Supply Module
